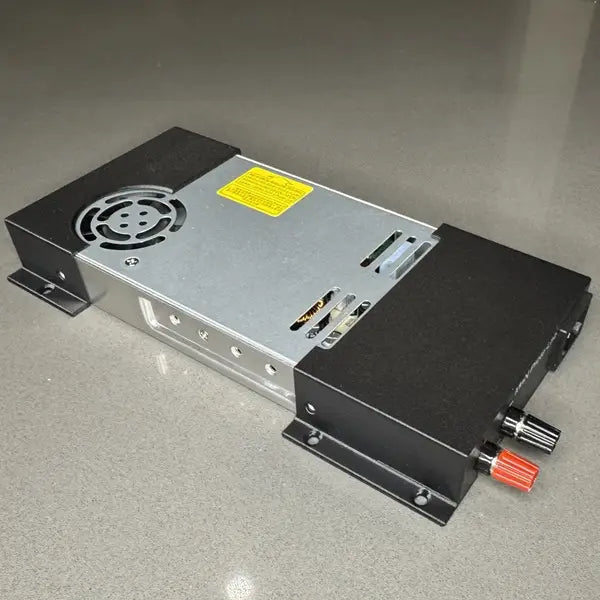

Meanwell LRS-350 PSU Enclosure Mount

Meanwell LRS-350 PSU Enclosure Mount

Ensure a clean, safe, and professional setup with our premium Enclosure Mount for the Meanwell LRS-350 Power Supply. Engineered specifically to complement the LRS-350 footprint, this heavy-duty enclosure features a dual-chamber design — physically separating the mains AC wiring from the low-voltage DC output connections. It eliminates the hazard of accidental contact with live electrical connections while providing a sleek, factory-spec finish to your power assembly.

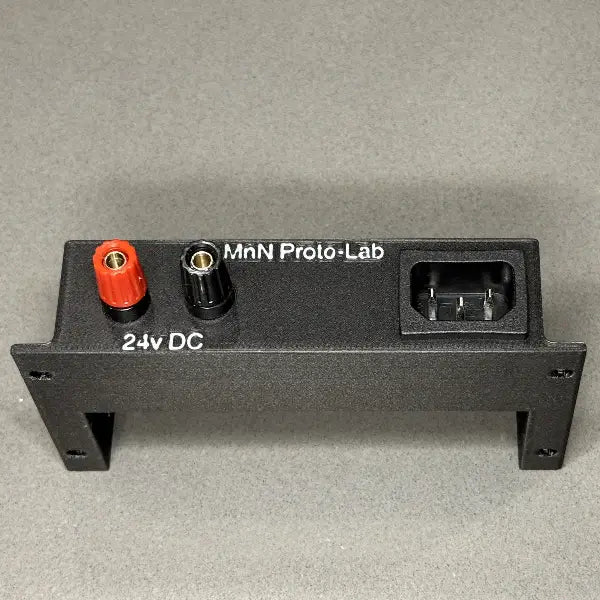

The enclosure features precise cutouts designed for an integrated IEC power input and binding post terminals, keeping your benchtop, workshop, or control panel exceptionally organised.

📸 Note: Updated product photos coming soon.

What's Included

All versions come supplied with a high quality solid copper tin-plated IEC socket for clean and reliable mains power input. Output connections differ by voltage variant:

• 15V, 24V, 36V & 48V versions: Feature gold-plated binding posts for low-resistance, corrosion-resistant DC output connections.
• 3.3V, 5V & 12V versions: Include the same high-quality IEC socket, with M8 high-current 100A binding posts for robust, high-amperage DC output termination.

Engineered for Safety & Clean Wire Termination

• Dual-Chamber Design: A dedicated internal barrier physically separates the mains AC wiring chamber from the DC output terminals — keeping high-voltage and low-voltage connections completely isolated from each other.
• Complete Terminal Shroud: Fully encloses all exposed wiring, preventing accidental contact with live connections and giving your build a clean, professional finish.
• Rigid Carbon Fibre Composite: Printed in structural PETG-CF (Carbon Fibre reinforced PETG), offering excellent dimensional stability and superior heat resistance right next to your active power supply.
• Seamless Component Integration: Features precise press-fit cutouts tailored to house the included IEC socket and output binding posts for quick, tidy power distribution.
• Hardware Included: Every enclosure mount comes complete with the necessary mounting screws to attach it securely to the side chassis of your Meanwell LRS-350.

Technical Specifications & Component Compatibility

• Compatible PSU: Designed exclusively for the Meanwell LRS-350 model. (Note: Not compatible with LRS-600 or smaller LRS variants.)
• Included IEC Socket: MnN Proto-Lab IEC C14 press-fit panel mount socket — solid copper, tin-plated conductors.
• Material Profile: High-temp, rigid PETG-CF composite (Satin Black).
• Note: Power supply unit is not included.

⚠️ Safety Notice: Assembly involves connecting mains voltage wiring between the IEC socket and the power supply terminals. It is the responsibility of the installer to ensure all connections are made safely, using appropriate wire ratings, proper insulation, and correct termination techniques. Always follow relevant electrical safety guidelines applicable in your region.

Frequently Asked Questions

Does this mount fit other power supplies?

No. This enclosure mount is custom-moulded to match the chassis geometry and screw mounting points of the Meanwell LRS-350 power supply exclusively. It will not fit the larger Meanwell LRS-600 or any third-party generic power supplies.

What exactly is included in the box?

You will receive the 3D-printed PETG-CF terminal enclosure mount, the IEC socket, the appropriate output binding posts for your voltage variant, and the mounting screws required to anchor it to your LRS-350 unit. The Meanwell power supply itself must be purchased separately.

Which IEC power socket is included?

All versions include the MnN Proto-Lab IEC C14 Press Fit Panel Mount Socket — featuring solid copper, tin-plated conductors for a reliable, low-resistance mains connection.

What is the dual-chamber design?

The enclosure features an internal dividing barrier that creates two separate wiring chambers — one for the mains AC input wiring and one for the DC output terminals. This physically isolates the two circuits from each other, reducing risk and keeping your build neat and organised.

What material is the mount printed from?

The enclosure mount is printed in premium PETG-CF (Carbon Fibre reinforced PETG). This industrial-grade material blends the tough, chemical-resistant qualities of PETG with high-rigidity carbon strands. It provides incredible structural durability, won't warp or flex under cable tension, and easily withstands the operating temperatures generated by hard-working power supplies.

Is this mount safe for high-voltage mains wiring?

Yes. The dual-chamber design physically separates mains AC wiring from the DC output side, while the full terminal shroud prevents accidental contact with live connections. Safety still depends on proper installation — always use correct wire ratings, proper insulation, and check all connections before applying power.
