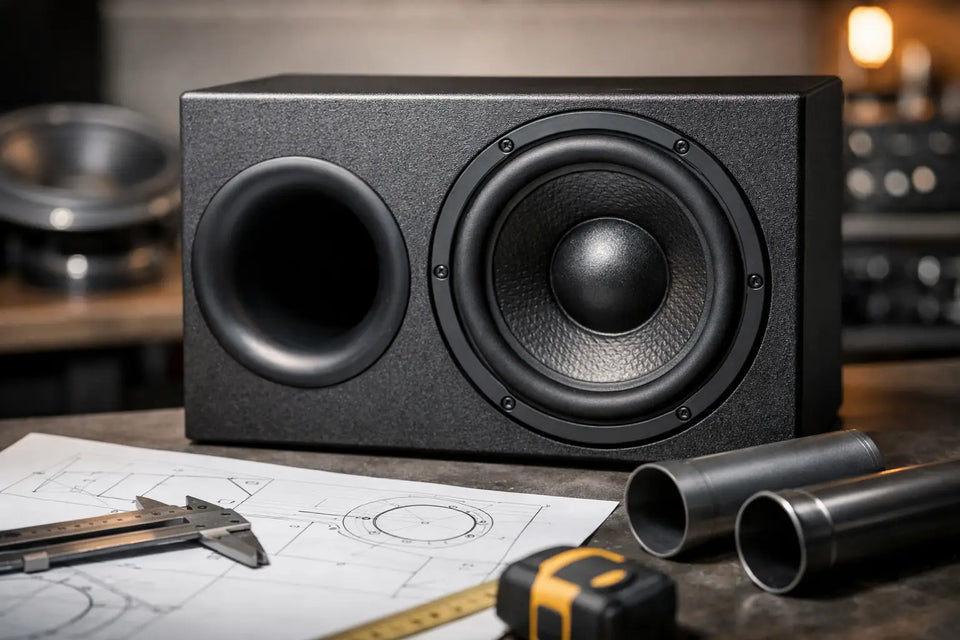

Speaker Box Port Sizing Guide for Clean Bass

A ported speaker box can produce deeper, more efficient bass than a sealed enclosure of the same size, but only when the port and box are designed as one system. This speaker box port sizing guide covers the practical decisions that matter: enclosure volume, tuning frequency, port area, port length and the clearance needed for the port to work properly.

A port is not simply a hole added to a box. It is a tuned air mass that works with the air spring inside the enclosure. Get the dimensions right and the port supports the woofer around the chosen tuning frequency. Get them wrong and you can end up with weak low bass, excessive cone movement, audible air noise or a box that sounds nothing like the design on paper.

Start with the driver and the net box volume

Port sizing starts after the driver has been selected. Every woofer has parameters that indicate the enclosure volume and tuning range it is suited to. Use the manufacturer’s recommended vented alignment where available, or model the driver using its Thiele/Small parameters in speaker design software.

The volume used for tuning must be the net internal volume. This is the air space left after deducting the displacement of the woofer, port, bracing, terminal cup and any other parts inside the enclosure. A box with 50 litres of physical internal space may only have 45 litres of usable net volume once those components are fitted.

This detail is often missed in DIY builds. A port calculated for 50 litres but installed in a 45-litre net enclosure will tune higher than intended. That can make bass sound punchier in a narrow range, but it may sacrifice the lower extension and cone control the design was meant to deliver.

Choose a tuning frequency for the job

Tuning frequency, usually shown as Fb, is the point where the port makes its strongest contribution. There is no universal best number. It depends on the driver, enclosure size, intended listening level and material.

For a compact home speaker, a lower tuning point may extend perceived bass but can require a long port that is difficult to fit. For a PA, workshop or car-audio style build that needs output and impact, a higher tuning point can be more practical. The trade-off is less low-frequency extension below tuning.

As a broad starting point, many hi-fi and general-purpose vented boxes tune somewhere around 30 to 45 Hz. That is only a starting range, not a substitute for modelling the actual driver. A small woofer forced into a low-tuned large enclosure may run out of excursion before it produces useful deep bass.

Speaker box port sizing guide: area before length

Port diameter or port area determines how quickly air moves through the vent. If the port is too small, air velocity rises and the port can chuff, whistle or compress at higher volume. If it is too large, the required port becomes longer, sometimes impractically so.

For round ports, area increases rapidly with diameter. A 100 mm port has four times the area of a 50 mm port, not twice the area. That is why stepping up a port diameter often creates a major change in required length.

A sensible design checks port air velocity at the intended power level. Many builders aim to keep peak vent velocity below roughly 17 to 20 metres per second for clean domestic listening. Higher velocities may be acceptable in systems where maximum output matters more than absolute refinement, but they are more likely to make noise. Flared ends help, though they cannot fully rescue a badly undersized port.

Port area should also suit the driver’s displacement and expected output. A modest 5-inch woofer does not normally need the same vent area as a high-excursion 12-inch subwoofer. More area is not automatically better if it forces a folded, cramped port with poor clearances.

Round, slot and flared ports

Round ports are straightforward to calculate, easy to fit and generally predictable. They work well in many compact enclosures, especially when using purpose-made flared speaker ports. The flare smooths airflow at the port entrance and exit, reducing turbulence when the system is pushed harder.

Slot ports can make better use of a box’s internal shape and are common in larger enclosures. They need more care than round ports because the port height, width, internal wall friction and nearby surfaces can all influence the real result. A narrow slot may have sufficient calculated area but still generate noise because one dimension is too tight.

A slot port built as part of the enclosure also occupies volume. Include its internal displacement in the net-volume calculation. The same applies to a long round tube. If you ignore that displacement, the final tuning will shift.

Calculate port length with consistent units

Once you have net volume, tuning frequency and port area, use a proven enclosure calculator or speaker modelling program to calculate the physical port length. Keep units consistent. Mixing litres with cubic feet, or millimetres with inches, is an easy way to produce an unusable result.

The calculation is based on Helmholtz resonance, but the physical port length is not simply the straight-line measurement from one end to the other. Air just outside each port opening moves with the air inside the tube. This is called end correction, and it changes according to whether the port end is flared, flush-mounted, free in the box or close to a wall.

For that reason, use a calculator that allows you to select the port type where possible. If you use a commercial flared port, follow the manufacturer’s stated effective length guidance rather than assuming every millimetre of plastic is acoustically equivalent to a plain pipe.

As a practical rule, a lower tuning frequency requires a longer port. A larger port area also requires a longer port to maintain the same tuning. This is why a large, low-tuned subwoofer enclosure can need a port that is too long to run straight inside the cabinet.

Make the port fit without compromising it

If a calculated port is too long, do not shorten it at random. A shorter port raises tuning. That may be acceptable only if you re-model the enclosure and confirm the driver remains controlled at the new alignment.

Instead, consider a folded port, a larger enclosure where appropriate, multiple ports, or a different tuning target. Multiple identical round ports share the total air flow, but the calculator must account for both the number and diameter of ports. Two ports are not calculated as one port of the same diameter.

Keep the inner port opening clear of the rear wall, internal bracing and acoustic damping material. A useful minimum is about one port diameter of clearance from the internal end to the nearest surface. More space is preferable where the enclosure allows it. A port terminating hard against a wall behaves differently from the same port in open internal space.

Avoid placing loose polyester fill or foam where it can be drawn into the port. Lining enclosure walls can reduce internal reflections, but blocking the port path changes its effective behaviour and can create noise.

Check the port at real listening levels

A calculator produces a starting design, not a final listening test. Once the box is built, listen for chuffing on low-frequency material and check for unwanted mechanical noise. A measurement microphone and impedance sweep can confirm the actual tuning frequency, but even without specialist gear, careful testing can reveal obvious problems.

If the tuning is slightly low, trimming a removable straight port in small increments can raise it. This is far easier than trying to lengthen a port after the cabinet is finished. Build with enough access to make sensible adjustments, particularly when working with a prototype enclosure or an unfamiliar driver.

Also remember what happens below tuning. In a vented box, woofer cone control drops away rapidly below Fb. If the system will see high power, especially with sub-bass content, use an appropriate high-pass filter. The port does not protect a driver below its tuning frequency.

Common port-sizing mistakes

The most common mistake is selecting a port by diameter alone. A 75 mm port may look suitable, but its required length, airflow capacity and fit inside the enclosure depend on the specific box volume and tuning. The second is calculating from gross box volume rather than net volume.

Another frequent problem is using a port that is physically correct on paper but poorly installed. Tight bends, blocked inner ends, a port opening too close to a wall and sharp unflared edges can all increase turbulence. A well-made enclosure with a correctly sized, properly cleared port will usually outperform a more elaborate box built around guesses.

For a clean result, settle the driver, net volume and tuning target first. Then size the port for adequate airflow, calculate its effective length, allow for displacement and verify the finished box. That disciplined order saves material, avoids rework and gives the bass section a proper chance to do its job.
