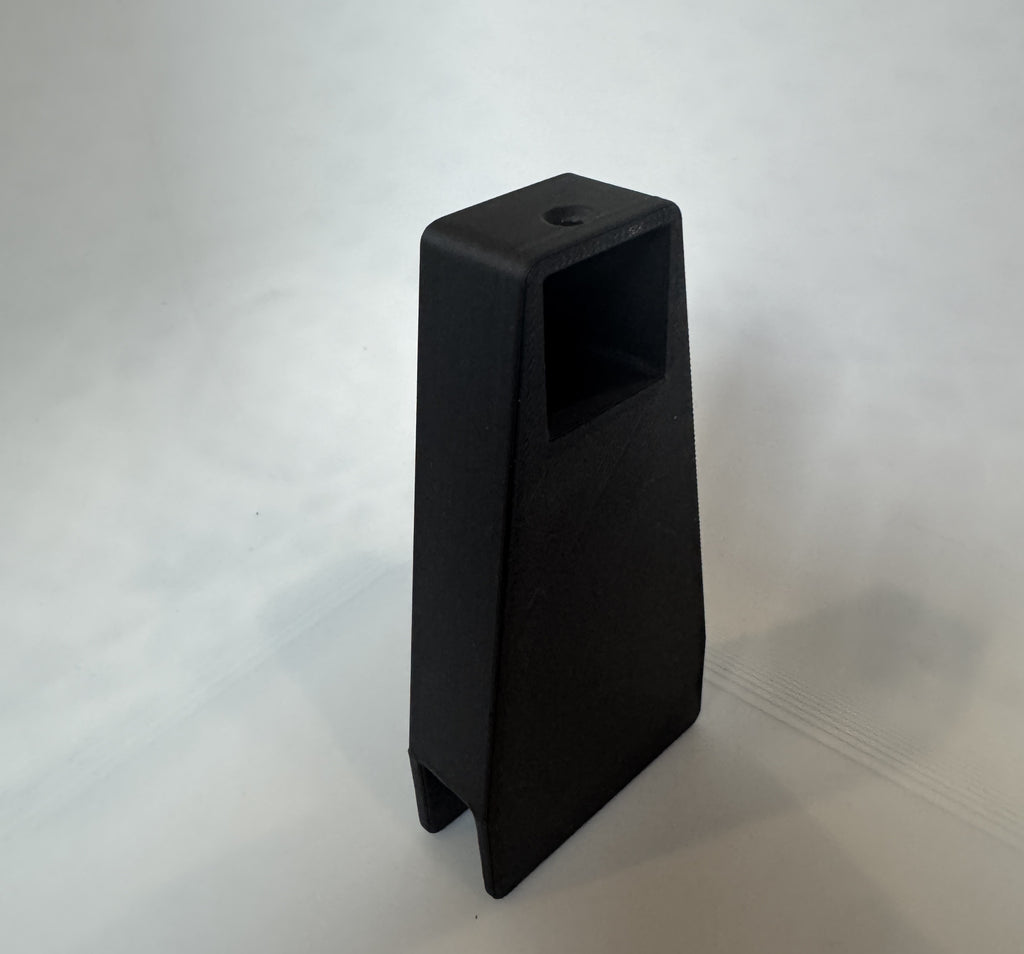

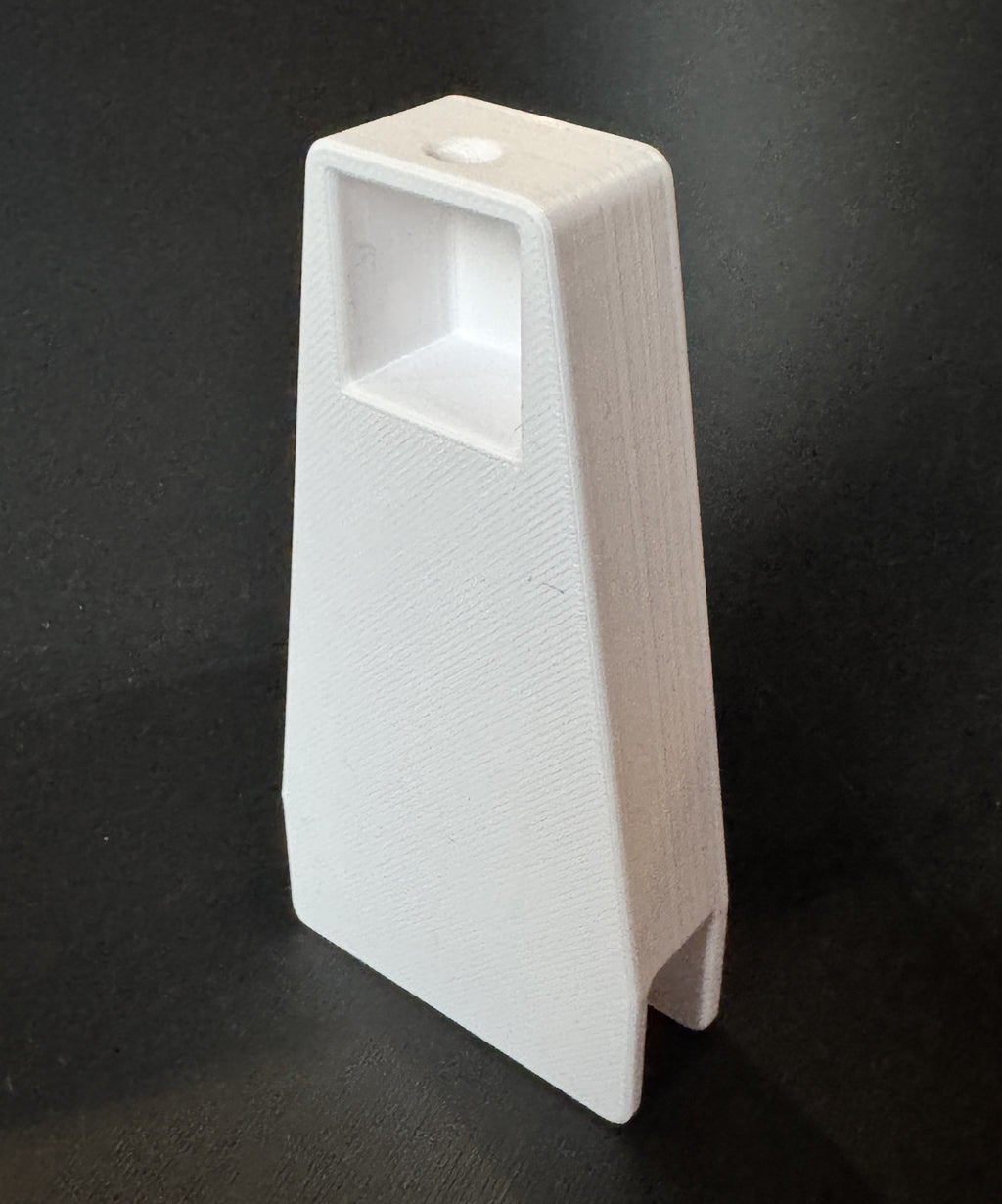

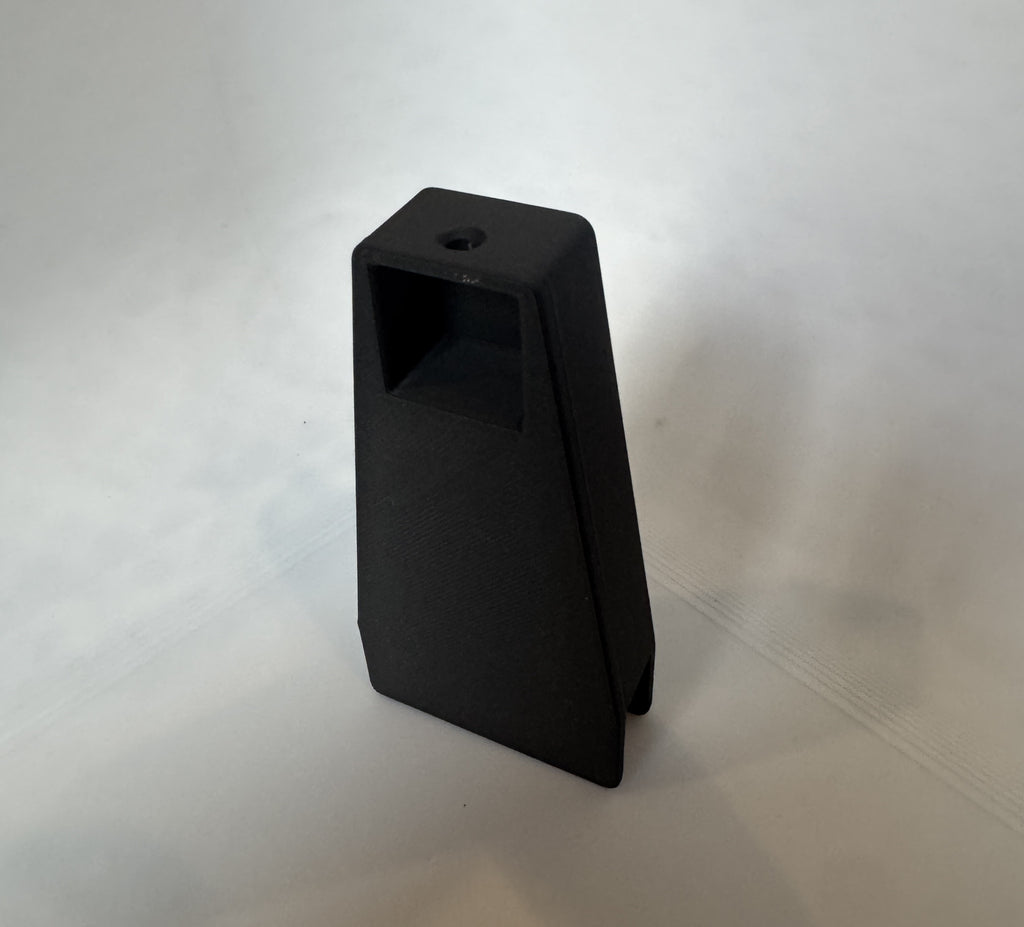

2020 V Slot - Tank mount

Part of our Ai Blade mounting brackets for V slot rail.  End mounts for 2020 V slot rail in various heights and sizes for different thickness glass.

For the rail length, simply measure the diameter from the outside edge to edge of where you want to mount the rail, and that is the length required.

Available to suit a range of glass thickness, and heights from 100mm to 200mm.

Note: 100mm End Mounts position the light at or slightly below the top of the glass depending on the angle you set, for this reason we recommend going the 120mm or higher models as the lights could get splashed if you have a high-water level.

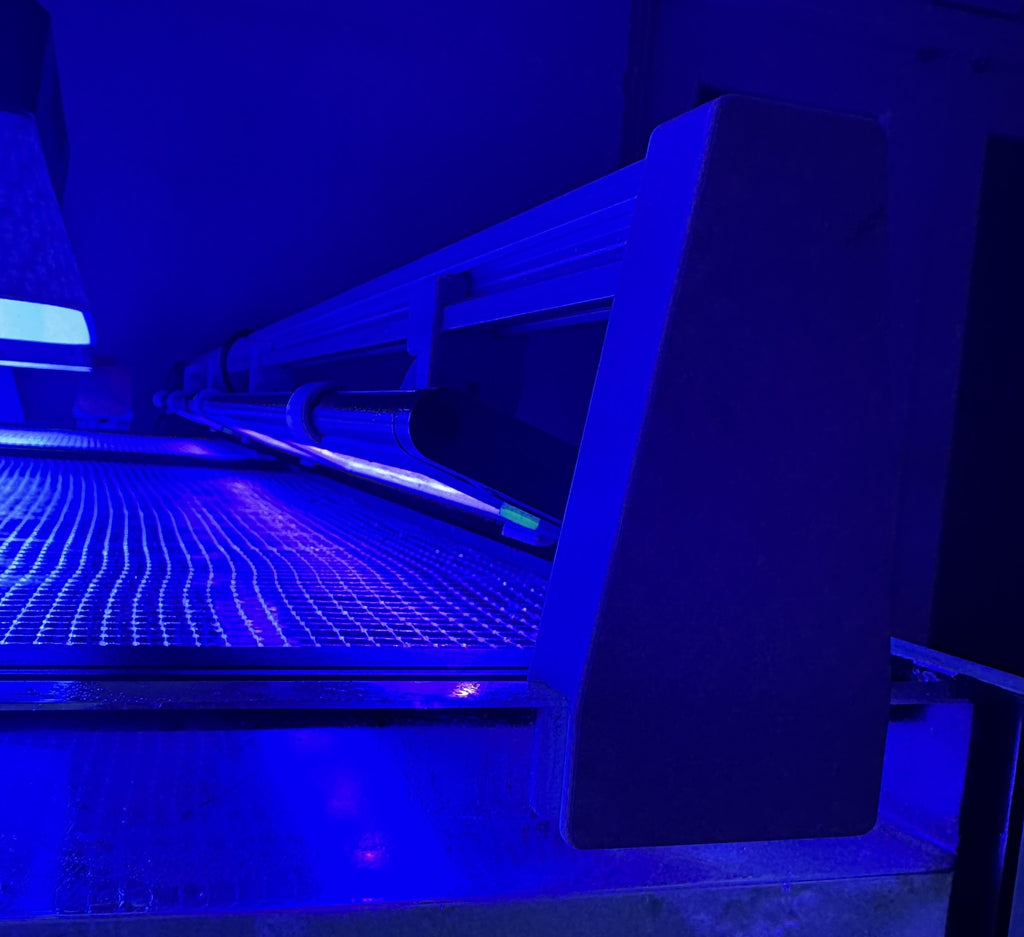

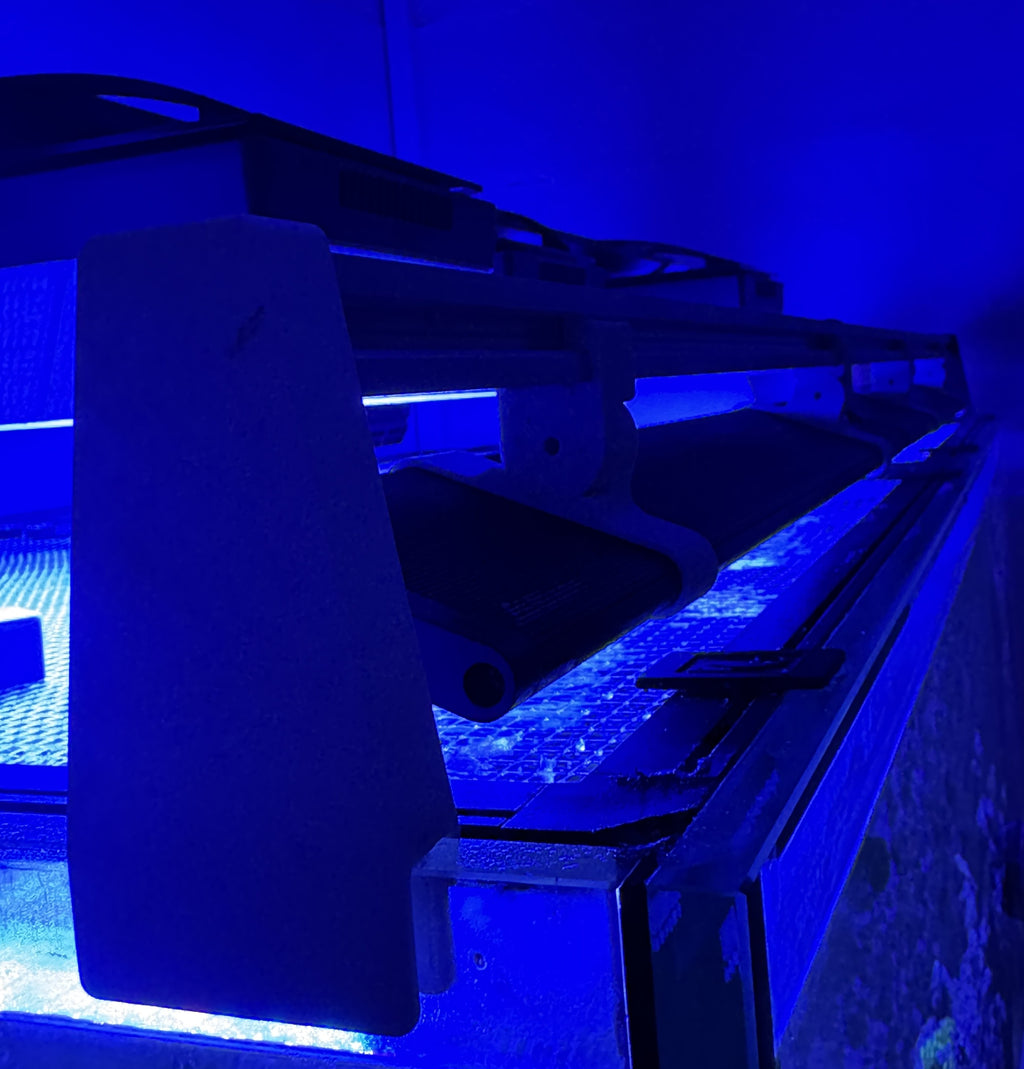

The mounts are designed to support the rail from both ends only.

The fit of the rail is firm, push one end on the rail and gently tap it on until it stops moving, then do the same on the opposite end.  There is an optional screw hole provided if you would like to screw the end to the rail.

Sold in Pairs

See link for Ai Blade Mounts
