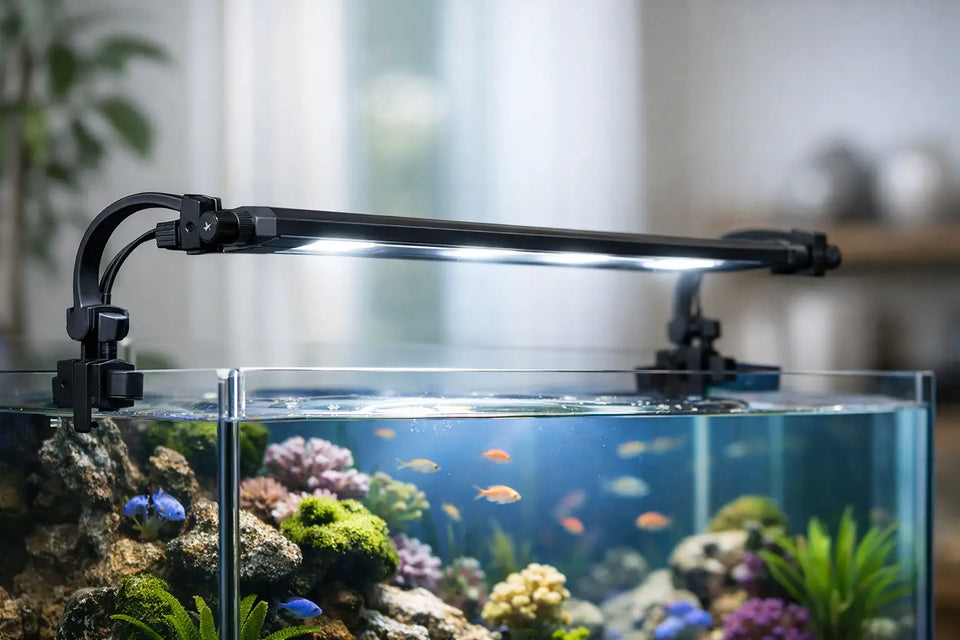

Aquarium Mounts That Keep Lighting Secure

A reef light can be excellent on paper and still be a poor setup if it hangs too high, sits off-centre or leaves cables draped across the tank. Aquarium mounts solve the part of the installation that often gets treated as an afterthought: keeping lighting, shades and accessories exactly where they need to be without compromising access, appearance or tank safety.

The right mount is not simply one that holds the weight. It needs to suit the tank rim, glass thickness, lid arrangement, light dimensions and the way you maintain the aquarium. A clean mounting solution makes the whole setup easier to live with, especially once salt spray, heat, cable routing and regular cleaning enter the picture.

What aquarium mounts need to do

An aquarium mount has a straightforward job, but the conditions around it are not straightforward. Reef tanks produce humidity, evaporation and salt creep. Freshwater tanks still deal with moisture, heat from lighting and the constant need to lift a lid, feed fish or service equipment. A mount that is awkward on day one becomes frustrating very quickly.

For lighting, the mount should position the fixture at a useful height above the water and keep it level from left to right. That height affects spread, glare and access. Too low can restrict maintenance and expose the light to more splash. Too high can waste output around the room and reduce useful coverage over the aquascape. The correct height depends on the light, the tank footprint and the corals or plants being kept.

It should also make cable routing deliberate rather than accidental. A power lead should leave the fixture without pulling on the mount, crossing the viewing panel or creating a path for water to run towards a power supply. A proper drip loop remains essential, but a well-planned mount gives you a far better place to start.

Choose aquarium mounts by the tank, not the photo

Product photos are useful for showing a general arrangement. They do not confirm whether a mount will clear your specific rim, brace, lid hinge or rear equipment. Before choosing a mount, measure the practical mounting area rather than relying on the nominal aquarium size.

Start with glass thickness and rim style. A rimless aquarium has a clean edge but often needs a clamp designed to distribute pressure safely. Framed tanks may have a plastic rim that changes the available clamping surface. Eurobracing, glass lids and rear chambers can all limit where a mount can sit.

Next, check the clearance behind the tank. This is commonly missed when an aquarium is close to a wall. A rear-mounted arm may need room to tighten a screw, angle a bracket or route a cable. If the tank is already full and in position, moving it later to fit a mount is not a job anyone wants.

Finally, consider the actual fixture. Check its width, mounting points and balance. A long LED bar can place leverage on an arm even when it is relatively light. A compact puck-style light may need a different bracket or adapter to keep it centred. The best solution is one designed around the light and tank combination, not a universal clamp forced into service.

Clamp mounts, rail mounts and fixed brackets

Clamp mounts are popular because they are adjustable and do not require drilling. They generally suit tanks where the rear glass edge is accessible and there is enough clearance for the clamp body. Their main advantage is flexibility: light height and position can usually be altered as the aquarium develops.

Rail or crossbar systems suit wider tanks and multiple lights. They provide a consistent reference line across the aquarium, which helps when spacing fixtures over a long reef tank. They can look more intentional than separate arms, although they take more planning and may add visual bulk above an open-top setup.

Fixed brackets are the tidy option when the installation will not change often. They work well for LED shades, purpose-built tank accessories and small equipment that needs a stable, repeatable position. The trade-off is adjustment. Confirm the position before committing, particularly if your aquascape or lighting plan is still changing.

Material matters around saltwater

Not every plastic or metal part that looks suitable is suited to an aquarium environment. Saltwater is particularly hard on hardware. It finds exposed fasteners, rough surfaces and poorly protected joins, then turns a neat installation into a corroded one.

For 3D printed aquarium accessories, material selection should match the location and load. Parts kept clear of direct heat and heavy stress have different requirements from a mount holding a light above warm, humid water. A well-designed printed part uses adequate wall thickness, sensible orientation and reinforcement where loads concentrate. The shape of the part matters as much as the filament used to make it.

Metal hardware deserves the same attention. Stainless fasteners are generally a better choice than uncoated steel in damp environments, but they are not maintenance-free. Keep an eye on them, wipe away salt residue and avoid mixing unsuitable metals where possible. If a component begins to show corrosion, replace it before it weakens or stains the area around it.

Do not assume thicker always means better, either. An oversized bracket can make a small tank look cluttered, block lid access or create unnecessary leverage on the glass. Good aquarium mounts use material where it earns its place, with a design that stays rigid without becoming cumbersome.

Set the light position before tightening anything

Mounting a light is easier when you set the intended position first. With the tank viewed from the front, mark the centre line and decide where the strongest part of the light spread should fall. On a reef aquarium, that may mean centring one fixture over the main rock structure or spacing several fixtures evenly along the tank length. On planted tanks, coverage across the full planting area may matter more than peak intensity in the middle.

Keep the fixture high enough to allow routine work. You need room to remove a lid, feed livestock, clean the glass and reach into the tank without catching your hand or tool on the light. A mount that can swing, slide or lift out of the way is useful, but only if the adjustment mechanism stays secure once set.

Check level from both the front and side. A light can look level at the end of an arm while still tilt towards the water. This affects presentation and may direct more light into the room than the aquarium. Tighten mounting hardware gradually and recheck alignment as you go. Over-tightening a glass clamp is not a substitute for correct fit.

Keep load paths simple

Every mount has a load path: the light transfers weight to the bracket, the bracket transfers it to the clamp or fixing point, and that load reaches the aquarium or stand. Keep that path direct. Avoid stacking adapters, adding improvised spacers or hanging extra equipment from a light arm unless the mount was designed for it.

Cable weight also counts. If several leads hang from one side, they can slowly twist a mount or pull a fixture out of level. Support cables near the exit point and leave enough slack for adjustment. The aim is a stable installation where the mount carries the fixture and the cable simply follows it.

Common mounting mistakes worth avoiding

The most common issue is choosing by appearance alone. A slim arm may look ideal but lack the reach for a wide tank, while a universal bracket may technically fit yet interfere with a glass lid. Measure first, then select the mount style.

Another mistake is placing a fixture so low that maintenance becomes a chore. If cleaning the tank means removing a bracket each time, the setup is working against you. Allow space for the jobs you perform every week, not only for the clean display photo.

It is also worth avoiding adhesives for anything carrying meaningful overhead weight in a humid aquarium environment. Adhesive-backed accessories can be useful for light-duty cable guidance or small non-critical parts, but lighting mounts and loaded brackets need a mechanical fixing method suited to the task.

At MnN Proto-Lab, the focus is on purpose-built parts that address these real installation details: fit, clearance, cable routing and a clean finished result. The right component should make an aquarium easier to run, not add another item to monitor.

A mount should make maintenance easier

The best aquarium mount fades into the setup once installed. It holds the light at the right height, keeps the rear of the tank orderly and gives you clear access when it is time to clean, feed or adjust equipment. It does not need constant retightening, awkward workarounds or a collection of temporary fixes.

Take the extra few minutes to measure the tank edge, available clearance and fixture dimensions before buying. A mount chosen for those details will keep the installation secure and tidy long after the initial build is finished.
