Cable Raceways for Clean, Serviceable Cable Runs

A cable run can look finished one minute and become a problem the next. Add a power supply, move a desk, replace an LED driver or alter an aquarium light, and loose leads quickly turn into a tangled, hard-to-service mess. Cable raceways provide a defined path for those leads, keeping an installation neater, better protected and easier to work on later.

For home offices, workshops, entertainment units, custom electronics and aquarium lighting setups, the goal is not simply to hide wire. A good cable management system keeps power and data separated where required, avoids tight bends, allows for future changes and prevents cables from being snagged, crushed or exposed to unnecessary heat.

What cable raceways actually do

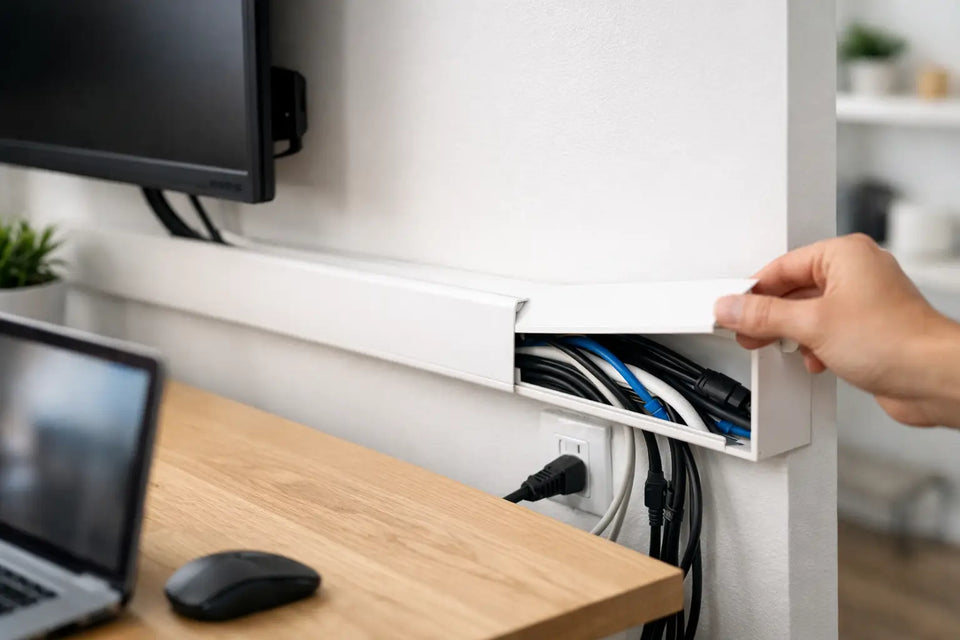

A cable raceway is a channel that routes and contains cables along a wall, desk, cabinet, rack or other mounting surface. Most have a removable lid or open top, making them more practical than burying cables behind a fixed panel. They can be surface-mounted, fitted under a desk, run vertically beside equipment or installed inside an enclosure.

The right raceway improves more than appearance. It reduces strain on plugs and connectors, stops cables from hanging where they can be caught, and makes fault-finding less frustrating. When a power lead or network cable needs replacing, you can access the run without pulling apart the whole installation.

Raceways are especially useful where several different leads meet at one point. Think of a desk with monitors, chargers, audio gear and a power board, or a reef tank cabinet with lighting cables, pumps, controllers and low-voltage power supplies. These setups benefit from a clear route rather than a bundle held together with cable ties.

Choose the raceway size before choosing the finish

The most common mistake is buying a raceway that only fits the cables currently on hand. It may look tidy on day one, but there is no room to add a new device, replace a lead with a thicker one or route a plug through the channel. Measure the cable bundle with some allowance for expansion, then choose a channel that can be closed without forcing the lid.

Cable diameter matters, but plug size matters too. A slim USB lead is easy to route; a mains lead with a moulded plug, HDMI connector or power brick is not. If the cable must enter the raceway from the side, confirm that the entry point is large enough and positioned where the lead naturally wants to run. Avoid bending a cable sharply just to make it suit the channel.

For mixed installations, it is often better to use two smaller channels than one oversized raceway. One can carry mains power while the other handles low-voltage, data, speaker or signal cables. This keeps the setup easier to trace and can help reduce interference in sensitive audio or data runs. The required separation depends on the equipment and local electrical requirements, so do not assume one method suits every job.

Material and location determine how long it lasts

Plastic cable raceways are common for indoor work because they are lightweight, electrically non-conductive and easy to cut. They suit desk backs, walls, cabinets and equipment bays where the main job is organisation and basic protection. Quality matters here. Thin, brittle plastic can crack around screw holes, warp with heat or leave a lid that no longer clips on securely.

Metal raceways are a better fit for tougher environments, exposed workshop areas or installations where higher impact resistance is needed. They can provide a more durable finish, but sharp cut edges must be dealt with properly and cable insulation must not rub against unfinished metal. Metal systems may also have specific earthing requirements depending on the installation.

For a temporary or frequently changed setup, flexible conduit or split tubing may be more useful than a rigid surface channel. It will follow curves and awkward routes more easily, although it rarely gives the same clean appearance or access as a lidded raceway. The trade-off is simple: rigid raceways look more deliberate and protect a route well, while flexible products suit movement and irregular paths.

Location matters as much as material. Keep raceways away from heat sources, moving parts, damp areas and positions where a chair, door, drawer or foot traffic will repeatedly strike them. In aquarium cabinets, allow for humidity, salt creep and the chance of a minor spill. Cable management should never create a place where water can collect around plugs, drivers or power supplies.

Plan the route before mounting anything

Start at the equipment end and work back to the power or connection point. This reveals whether a cable needs a straight drop, a corner, a vertical rise or a service loop. It also helps identify the leads that should remain accessible, such as a controller cable, a power supply output or a network connection.

Keep the route direct, but do not make it so tight that there is no slack for maintenance. A small, controlled service loop near equipment is useful. A large coil stuffed into a raceway is not. Excess cable creates heat buildup in some situations, makes tracing harder and can stop the lid from seating correctly.

Before drilling, hold the raceway in place and check it from normal viewing height. On a desk, this means sitting in the chair rather than standing over the worktop. On a wall-mounted installation, check that the channel will not interfere with furniture, brackets or a removable panel. A pencil line and a dry fit take minutes and prevent a crooked run that is obvious forever.

Corners deserve attention. External corners, internal corners and changes in height are where cable runs usually look untidy. Purpose-made corner pieces create the cleanest result when they suit the system. If you need to mitre straight lengths, cut carefully, deburr the edge and test-fit both sections before mounting. A rough cut can damage cable jackets and leave visible gaps.

Mounting methods: adhesive versus mechanical fixing

Adhesive-backed cable raceways are quick to install and can be ideal on smooth, clean indoor surfaces. They work best when the surface has been cleaned of dust, oil and polish, and when the raceway is not overloaded. Give the adhesive time to bond before filling the channel with cables.

Adhesive is less dependable on textured paint, powder-coated surfaces, rough timber, damp areas or places exposed to heat. It can also fail when a heavy bundle puts constant downward force on a vertical run. If a raceway falls, it can pull paint away with it and place strain on connected equipment.

Screws provide a more dependable fixing for long runs, heavier cable bundles and equipment cabinets. Use suitable fixings for the material behind the surface rather than relying on a screw pushed into plasterboard alone. In a workshop or under a desk, mechanical fixing is usually worth the extra effort because it remains serviceable when cables are added later.

A mixed approach can be practical. Adhesive can hold a channel in position while mounting holes are marked, then screws take the load. Just make sure the lid can still be removed after installation. A raceway that cannot be opened is only slightly more useful than hiding cables behind a panel.

Build for service, not just appearance

A tidy cable route should also make sense to the next person who opens it, even if that person is you six months later. Group cables by function where possible, and avoid crossing every lead at the same point. Leave enough space around power supplies and drivers for ventilation, following the manufacturer's clearance guidance rather than enclosing them tightly for the sake of a cleaner look.

Label both ends of important cables in more involved systems. This is worthwhile for aquarium controllers, audio equipment, network runs and power supply outputs, where similar black leads can otherwise be impossible to identify. Labels do not need to be elaborate. Clear, durable text is enough.

When routing mains power, use products and methods suited to the environment and comply with applicable Australian electrical requirements. Do not modify fixed wiring, overload power boards or conceal damaged leads inside a raceway. A channel is a management product, not a fix for unsafe electrical work. If the job involves fixed mains wiring or you are unsure about separation, protection or compliance, use a licensed electrician.

A quick check before closing the lid

Before the final lid goes on, confirm that cables are not pinched, connectors are not under tension and ventilation openings on connected gear remain clear. Check that doors and drawers still move freely, and that power supplies, switches and plugs can be reached without dismantling the installation.

Then leave room for the likely next change. That could be another monitor, a replacement LED driver, a new controller or a different piece of audio equipment. The best cable raceways do not merely make a setup look organised. They give the installation a practical structure that keeps working when the setup changes.
