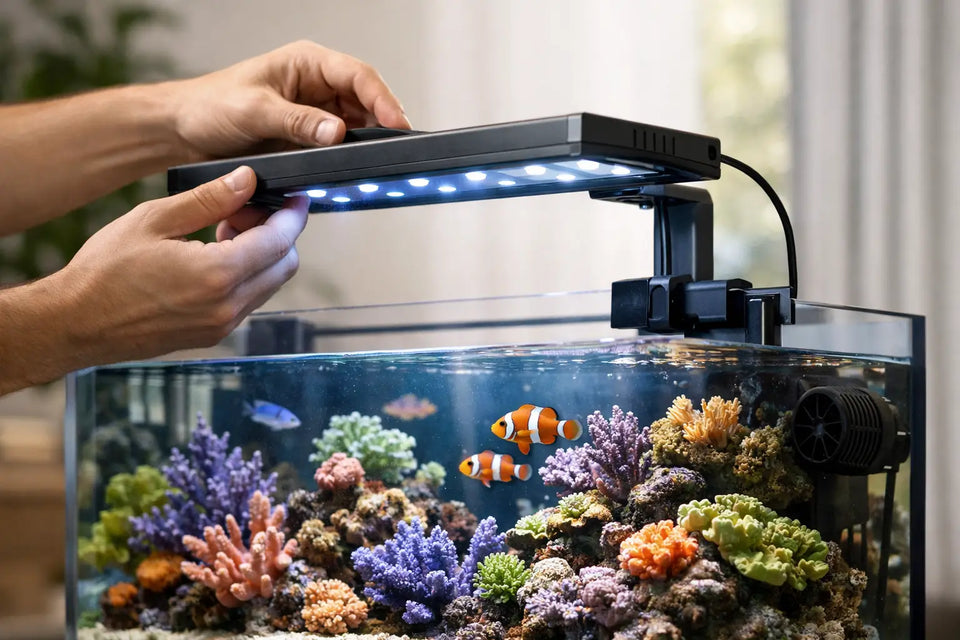

How to Mount an Aquarium Light for a Clean Reef Setup

A reef light can be expensive, powerful and carefully programmed, yet still perform poorly if it is mounted in the wrong spot. When you mount an aquarium light, the goal is not simply to get it above the tank. You need stable positioning, useful adjustment, safe cable routing and enough clearance to work around the aquarium without fighting the fixture every time.

A clean mount also changes how the whole setup looks. It removes the temporary bracket, bent wire and loose power lead problem that turns an otherwise tidy reef tank into a workbench. The right mounting method should hold its position, handle the humid environment and suit the tank, light and cabinetry you actually have.

Start with the light’s required mounting height

Most LED reef lights need to sit above the water rather than directly on the tank rim. The correct height depends on the fixture’s lens angle, output, tank dimensions and the corals being kept. Mounting too low can create harsh hotspots, excessive shimmer and uneven PAR. Mounting too high spreads the light wider but reduces intensity and can spill glare into the room.

For many compact reef LEDs, a starting point around 200 to 300 mm above the water gives enough spread for tuning. Larger fixtures, lights with wide lenses and shallow tanks may need more height. A deep tank with a focused light may work closer to the surface. The manufacturer’s recommended range is the sensible starting point, then adjust based on coral response and measured PAR where possible.

Do not choose a mount solely because it reaches the advertised height. Check whether it allows small changes after installation. A fixed arm can look neat, but a mount with controlled height and reach adjustment gives you room to correct coverage without drilling another hole or replacing hardware.

Choose a mount style that suits the tank

There is no single best way to mount an aquarium light. The useful option is the one that matches the tank construction, the available space and how often you need access from above.

Tank-mounted arms

Tank-mounted arms attach to the rear glass, rim or cabinet edge and hold the light on an upright support. They are a practical choice for smaller tanks and compact single-puck LEDs because they keep the mounting hardware close to the aquarium. They also avoid drilling walls or ceilings.

The main trade-off is load on the tank edge. The mount must distribute force properly and use suitable pads or clamps so it does not point-load the glass. It also needs enough stiffness that the light does not slowly lean, bounce when the cabinet is bumped or sag once cable weight is added.

For rimless tanks, confirm the clamp is designed for the glass thickness. For framed tanks, make sure the frame does not interfere with the clamp sitting flat. A mount that is technically compatible but only grips on a narrow edge is not a dependable solution.

Cabinet or wall-mounted brackets

A bracket fixed to the rear of the cabinet, a wall stud or a solid mounting board can give a more permanent result. This approach works well where the aquarium is against a wall and you want the light to appear suspended without hardware clamped to the tank.

The mounting surface matters. A thin cabinet back panel is rarely enough on its own. Fix into structural material, reinforce the panel, or use a purpose-built bracket that spreads the load. Consider the force created by the light sitting out from the mounting point. Even a lightweight fixture places leverage on the bracket when it is held several hundred millimetres forward.

Wall mounting is tidy, but it can reduce access if the arm does not swing away. Think about how you will remove lids, clean the glass, feed coral and lift equipment out of the tank before locking the position in.

Hanging kits

Suspension kits suit larger panel lights and multi-light layouts. They provide clean height adjustment and can centre a fixture accurately over a long aquarium. They are also useful when the tank is viewable from more than one side and rear-mounted arms would be visible.

Their limitation is the mounting point above the tank. Ceiling fixings must go into suitable structure, not just plasterboard. In a rental or a room with an awkward ceiling, this may not be practical. Hanging wires also need to be set evenly, otherwise the fixture can sit out of level or twist over time.

Check the load, reach and fixing points

Before selecting hardware, weigh the complete load. That means the light, mounting adaptor, power lead sections supported by the arm and any shades or diffusers fitted to the unit. Do not use the bare fixture weight and assume the rest is negligible.

Then consider reach. A light mounted 250 mm above the water and 200 mm forward from the rear of the tank puts more force on a bracket than one sitting directly over its fixing point. The longer the arm, the more important material thickness, bracing and fastening become.

A dependable mount should be designed around the fixture it carries. Generic hardware can work, but only if its dimensions, bolt pattern and load path genuinely suit the application. A purpose-made tank mount or light adaptor usually gives a cleaner fit because the light is held at the intended orientation rather than balanced on an improvised plate.

If you are using 3D printed mounting parts, material choice is not a minor detail. Aquarium lighting sits near warm electronics, salt spray and constant humidity. Parts should be made from a material suited to the environment and designed with sufficient wall thickness, reinforcement and fastening points. Avoid treating a lightweight printed test piece as a final load-bearing component.

Position the fixture before tightening anything

Set the light where it needs to be before fully tightening clamps, bolts or grub screws. Start by centring it left to right over the main rockwork, then set the front-to-back position. The brightest part of the spread should cover the corals, not the back wall or the front lounge room floor.

Look at the tank from normal viewing positions. A light that produces good coverage can still be unpleasant if the LEDs are visible from the couch or dining table. Raising the fixture slightly, moving it back a small amount or fitting a suitable shade can reduce glare without materially changing the useful light on the reef.

Shades are especially worthwhile with high-output puck lights. They direct stray light down into the aquarium, reduce side glare and make the fixture look more finished. They are not a substitute for correct mounting height, but they can make a well-positioned light far more comfortable to live with.

Route cables for safety and service access

The mounting job is not finished when the light is level. Poor cable routing can pull a fixture out of alignment, create a snag point or direct water toward power equipment.

Leave a drip loop in every cable that runs from the light toward a power supply, controller or outlet. The cable should dip below the connection point before rising again, so any water follows the loop and drips away rather than travelling into electrical equipment. Keep power supplies and joins away from splash zones and avoid tightly bundling leads against a warm driver or heat sink.

Route the cable along the mounting arm or rear of the cabinet with enough slack for adjustment and maintenance. A cable pulled tight may look neat on day one, but it can place constant side load on the light connector or prevent you from moving the fixture when cleaning. The better result is supported cable with a deliberate service loop, hidden where practical but still easy to inspect.

Test the mount under real conditions

Once installed, check the setup with the light running at its normal output. Watch for vibration from cooling fans, movement when cabinet doors close and any gradual change in angle over several days. Salt residue can also reveal where splash or condensation is reaching parts it should not.

Recheck fasteners after the first week, then make it part of normal tank maintenance. Plastic components, clamps and threaded connections can settle slightly under load. A quick inspection is far easier than recovering a light that has shifted over the water.

At MnN Proto-Lab, practical aquarium accessories are designed around these installation details: secure fitment, clean presentation and useful adjustment rather than unnecessary complexity. Select a mount that suits your exact light and tank, install it with the full load in mind, and you will spend more time looking at the reef than fixing the hardware above it.
