Best Speaker Ports for Subwoofers That Fit

A subwoofer box can have quality drivers, solid joinery and plenty of amplifier power, then still sound wrong because the port was treated as an afterthought. The best speaker ports for subwoofers are not simply the biggest ports that fit through the baffle. They need the right internal area, length and termination shape for the enclosure volume, tuning target and output expected from the build.

For DIY builders, choosing the port early saves the usual problems later: excessive port noise, an enclosure that will not tune as modelled, or a tube that physically will not fit inside the cabinet. A properly selected flared port gives the box a cleaner finish and lets the system move air with less turbulence when the volume is turned up.

What makes the best speaker ports for subwoofers?

A bass reflex port works with the air inside the enclosure to support output around its tuning frequency. At that frequency, the port does much of the acoustic work while cone movement reduces. This is why port dimensions are part of the speaker design, not just a cosmetic opening.

The best speaker ports for subwoofers balance three things: enough cross-sectional area to keep air velocity under control, enough length to achieve the required tuning frequency, and a flared entry and exit to reduce turbulence. Change one of those variables and the others change with it.

A small port can be conveniently short, but it can become noisy at higher output. A large port moves air more quietly, but needs to be longer for the same tuning. In a compact enclosure, that longer tube can take up meaningful internal volume or require bends. There is no single diameter that suits every 10-inch, 12-inch or 15-inch subwoofer.

Driver specifications and enclosure modelling should set the starting point. Use the manufacturer’s Thiele-Small parameters in a reliable box calculator or modelling program, select a realistic net enclosure volume, then determine the port area and length required for your preferred tuning. Measure the finished port dimensions from flare to flare, not just the straight section of tube.

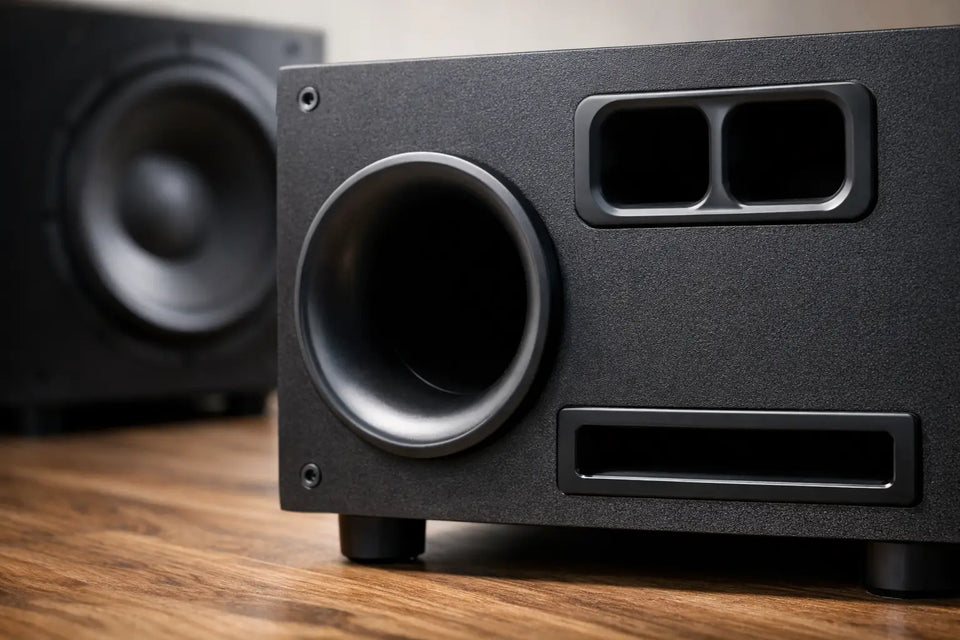

Round flared ports versus slot ports

Round flared ports are the practical choice for many home, car audio and compact DIY builds. They are straightforward to install, easy to model and give a clean, finished appearance on the baffle. A flare at both ends is particularly useful where the subwoofer is expected to play loudly, as it smooths airflow entering and leaving the port.

The flare does not make an undersized port suitable for high output, but it gives a correctly sized design more headroom before audible chuffing starts. That matters with low bass material, where a subwoofer shifts a lot of air and port velocity can rise quickly below about 40 Hz.

Slot ports can work very well, especially in larger enclosures where the port becomes part of the cabinet structure. They offer flexibility in area and shape, but need more care. Sharp internal corners, narrow gaps and poorly finished edges can create turbulence. The port walls also need to be rigid. A long slot port with thin, unsupported panels can resonate or flex, which adds unwanted noise.

For a straightforward build, a round flared port is often the more predictable option. For a large custom enclosure where space is planned from the start, a properly braced slot port may be the better fit. The right choice depends on the cabinet layout, not a blanket preference for one style.

Why flares matter at higher output

Air does not travel through a port as a perfectly smooth column. At higher levels, sharp port edges create turbulence that can sound like huffing, chuffing or a soft mechanical rasp. It is especially noticeable during deep bass notes and movie effects, when the driver is working hard.

Flared speaker ports ease the transition between the box, tube and outside air. The result is usually lower port noise and a more refined finish without needing an oversized opening in the baffle. A dual-flared design is worthwhile because both ends of the port experience high airflow.

Keep clearance around the internal flare as well. If the end of the port is too close to a cabinet wall, brace or driver magnet, airflow is restricted and the effective tuning can shift. As a practical rule, leave at least one port diameter of clearance where the layout allows. In tight cabinets, check the port manufacturer’s clearance guidance and model the final arrangement carefully.

Choosing port diameter and area

Port area should match the driver’s displacement and the expected output, rather than being selected solely by driver diameter. A modestly powered 10-inch woofer in a lounge-room subwoofer may work well with a smaller flared port than a high-excursion 12-inch driver in a car audio enclosure.

As a starting principle, higher power and greater cone travel call for more port area. More area reduces air speed, which helps reduce noise. The trade-off is port length. If a larger diameter port makes the required tube impractically long, do not shorten it to make it fit. That raises the tuning frequency and changes the behaviour of the enclosure.

Instead, reassess the design. You may be able to use a folded port, increase enclosure volume, choose a different tuning frequency or accept a slightly smaller port area if modelling shows velocity remains sensible at the intended power. The answer depends on how the subwoofer will actually be used. A nearfield desktop build does not need the same port capacity as a system designed to fill a shed or handle sustained high-output bass.

Avoid guessing by matching a port to the driver cut-out size. A 12-inch subwoofer does not automatically need a 4-inch port, and a 4-inch port is not automatically adequate. The enclosure tuning and predicted port velocity are what matter.

Port length is tuning, not trim length

The length of a port is one of the main controls for box tuning. A longer port lowers tuning; a shorter port raises it. This is useful when fine-tuning a design, but it also means trimming a tube without recalculating can undo the work done in the modelling stage.

Flared ports have end correction, meaning the effective acoustic length is not always identical to the visible straight tube length. Use the dimensions supplied for the specific port style where possible. If you are extending a port tube, ensure the internal joint is secure, airtight and smooth. A step or gap inside the air path can add turbulence.

Also account for displacement. The port tube itself takes up space inside the box, as do the driver, bracing and terminal cup. Enclosure plans should be based on net internal volume after these components are removed. This is a common source of mismatch between a calculated build and the finished cabinet.

Do not tune below the driver’s limits by accident

A low-tuned subwoofer can extend deeper, but lower is not always better. Below the port tuning frequency, the port stops controlling cone movement effectively. The driver can unload and reach excessive excursion if it receives strong low-frequency content without suitable filtering.

A sensible high-pass or subsonic filter is often part of a vented subwoofer system, particularly in car audio or high-power setups. Set it with the enclosure tuning and driver limits in mind. Port selection, box tuning and amplifier filtering need to work as one system.

Build details that affect the final result

A port needs an airtight installation. Seal the flange against the baffle, make a clean cut-out and ensure the tube cannot rattle against the cabinet. If the enclosure uses a removable baffle or access panel, check every joint. Air leaks often make a box sound loose or noisy and can be mistaken for a port problem.

Material choice matters too. A well-made flared port should hold its shape, resist cracking around the mounting flange and remain secure under vibration. For 3D printed parts, adequate wall thickness, suitable filament and print orientation are functional requirements, not just production details. The part needs to tolerate screw pressure, heat and continuous cabinet vibration.

Keep the port away from loose internal wiring and damping material. Polyfill or acoustic lining should not block the internal opening. If the port must bend or extend, maintain a smooth bore and avoid tight turns that reduce effective area.

MnN Proto-Lab flared speaker ports are designed for builders who want a clean baffle-mounted finish without treating airflow as an afterthought. Select the size around the enclosure design, then build the cabinet around the port rather than forcing the port to suit a finished box.

The best result comes from a simple discipline: model the enclosure first, choose a port that supports the required airflow, and give it the physical space it needs. A port that fits the design will sound better than one chosen because it was easiest to install.
