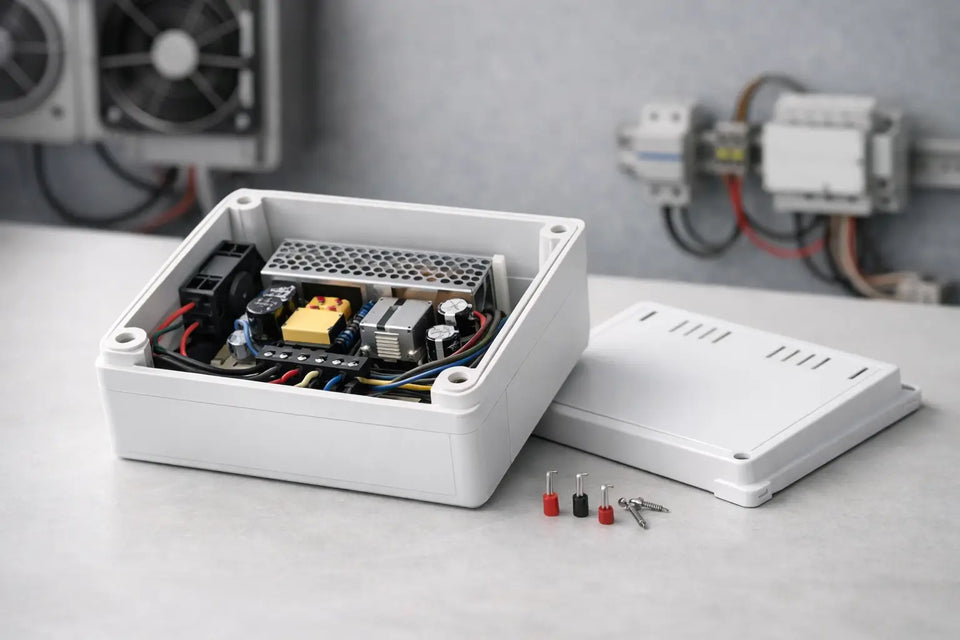

Meanwell Enclosure Cover Guide for Clean Installs

An exposed power supply can spoil an otherwise tidy build quickly. This Meanwell enclosure cover guide explains what a cover actually does, how to choose the right one, and where it fits in a safe, serviceable installation. For LED lighting, aquarium equipment, control boxes and custom electronics, the aim is simple: protect the supply, manage the cable exits and leave enough room for heat to escape.

A cover is not a substitute for correct electrical work or a suitable enclosure where one is required. It is a practical finishing component that helps turn a visible open-frame PSU into a cleaner installation.

What a Meanwell enclosure cover is for

Many Mean Well power supplies are open-frame or metal-cased units designed to be fitted inside equipment. They are dependable components, but terminal blocks, cable entries and mounting faces can remain exposed in a DIY installation. A purpose-made enclosure cover improves the presentation and helps reduce accidental contact with the wiring area.

For a bench project, that may mean keeping low-voltage leads from being tugged out of position. In a lighting setup, it can mean routing input and output cables in a predictable direction rather than leaving a loose bundle around the supply. On a wall-mounted build, it gives the installation a finished edge instead of making the PSU look like an unfinished part of the job.

The right cover should fit the intended supply family and mounting arrangement. “Meanwell” is not one universal size. Housing dimensions, terminal position, fan placement and mounting-hole spacing vary between models and series. Selecting by name alone is how a cover ends up fouling a cable gland, blocking a terminal screw or sitting crooked on the supply.

Start with the exact power supply model

Before choosing a cover, read the full model number from the PSU label. Check the supply's overall length, width and height, the location of AC and DC terminals, and any ventilation slots or fan openings. This takes a few minutes and avoids a poor fit.

A compatible cover should leave the terminals accessible enough for correct installation and later inspection. It should also allow cables to exit without being sharply bent or squeezed against the cover. Cable bend radius matters more than it first appears, particularly with heavier DC cable used for high-current LED systems.

Check mounting and orientation

Decide where the PSU will sit before installing the cover. A supply mounted flat under a cabinet may need cable exits at one end, while a vertical panel mount may need them at the bottom to keep the run neat. If the cover is designed around a particular orientation, rotating it can create clearance issues or interfere with airflow.

Also consider how the unit will be secured. The PSU should be firmly mounted to a suitable surface using the manufacturer’s specified mounting points and screw depths. Do not rely on a 3D printed cover to carry the power supply’s weight unless that is explicitly how the product was designed to be used. In most installations, the cover finishes and protects the assembly while the PSU mounting points do the structural work.

Ventilation is not optional

A cover needs to protect without turning the power supply into a heat trap. This is the main trade-off in any enclosed PSU installation: more coverage can improve appearance and reduce access to terminals, but insufficient airflow can shorten component life or cause thermal protection to operate.

Look at the power supply’s ventilation layout. Some units dissipate heat through the metal case and perforated sides. Others use an internal fan. A compatible cover must preserve clearance around these areas and must not obstruct fan intake or exhaust. Keep the completed assembly away from insulation, fabric, enclosed cupboards with no ventilation, and other heat-producing equipment.

Ambient temperature matters too. A PSU that runs comfortably on an open workbench may run warmer in a compact cabinet, roof space or equipment bay. If your load is close to the supply’s rated capacity, give yourself more ventilation margin rather than less. Choosing a higher-capacity supply where appropriate can reduce heat stress, but it does not remove the need for sound cable sizing, fusing and installation practice.

Do not mistake a cover for weather protection

Most enclosure covers are intended for dry indoor use unless their specification says otherwise. A cover over a power supply does not automatically provide an IP rating, make the unit safe for outdoor exposure, or protect it from aquarium splash, salt creep or condensation.

For humid or wet-adjacent locations, place the power supply in a properly rated enclosure suited to the environment, keep it clear of likely leaks and provide drip loops in cable runs where relevant. Reef lighting installations deserve particular care because saltwater residue can travel further than expected and can affect terminals over time.

Plan cable entry before tightening anything

A neat power supply install is easier when the cables are planned first. Identify the mains input, earth connection where applicable, low-voltage output, control wiring and any strain relief required. Keep mains and extra-low-voltage wiring arranged clearly, with no bare conductor visible outside the terminal block.

Strip only the amount of insulation required by the terminal. Use correctly sized cable, ferrules where appropriate for stranded conductors, and strain relief so normal movement in the cable does not pull directly on terminal screws. After tightening, gently check each conductor for security. Do not over-tighten terminals or mounting screws, particularly where a printed part is involved.

Where a cover has designed cable channels or exit points, use them as intended. Forcing a thicker cable through a narrow opening can damage insulation and place constant stress on both cable and cover. If your cable is substantially larger than the intended route allows, the answer may be a different cover, a revised layout or external cable management - not trimming the part until it barely fits.

Installation sequence for a serviceable result

Start with all power isolated. For any fixed wiring, mains connection or work outside your competence, use a licensed electrician. Australian electrical requirements are not optional, and a tidy-looking installation is not proof that it is safe.

Mount the power supply first, leaving sensible access to the terminals. Position the cover and confirm that it clears cable entries, mounting screws and ventilation areas before final fastening. Route and terminate cables carefully, then fit the cover according to its design. If the cover uses screws, tighten them evenly until secure without crushing or cracking the material.

Before energising, inspect the assembly under good light. Check that the polarity is correct on DC output, the earth is connected where required, terminal screws are secure, ventilation is open and no cable is pinched. After initial operation, check again once the system has been running under normal load. Warm is expected in many applications; excessive heat, smell, discolouration, fan noise or intermittent operation is a reason to shut down and investigate.

Printed covers need sensible care

A quality printed cover is an engineered accessory, not a disposable packing insert. It will perform best when installed within its intended environment and not exposed to unnecessary heat, solvents, direct UV or impacts. Clean it with a dry cloth or a lightly damp cloth after power is isolated. Avoid harsh cleaners that can affect plastics or leave residue around electrical equipment.

Inspect the cover occasionally, especially after moving equipment or altering wiring. Look for cracks around screw points, heat distortion, loose fasteners and cable rub. If you add a new LED strip, pump, fan or controller to the same supply, reassess the electrical load and airflow rather than assuming the original setup still has enough margin.

Choose fit and function over a generic box

A generic project box can hide a PSU, but it often creates extra work: drilling cable holes, arranging ventilation, finding a mounting method and making later servicing awkward. A model-specific Meanwell enclosure cover is useful because it is built around the practical details that generic boxes ignore - terminal access, cable direction, mounting clearance and a clean external finish.

MnN Proto-Lab covers are intended for builders who want that finishing step without turning a straightforward power supply install into another fabrication project. The best result is not the most enclosed-looking setup. It is one that stays cool, keeps wiring protected and can be inspected or serviced without pulling the whole build apart.

Take the time to match the cover to the exact PSU and the environment it will live in. A clean installation should make the next adjustment easier, not hide a problem until it becomes a bigger one.
