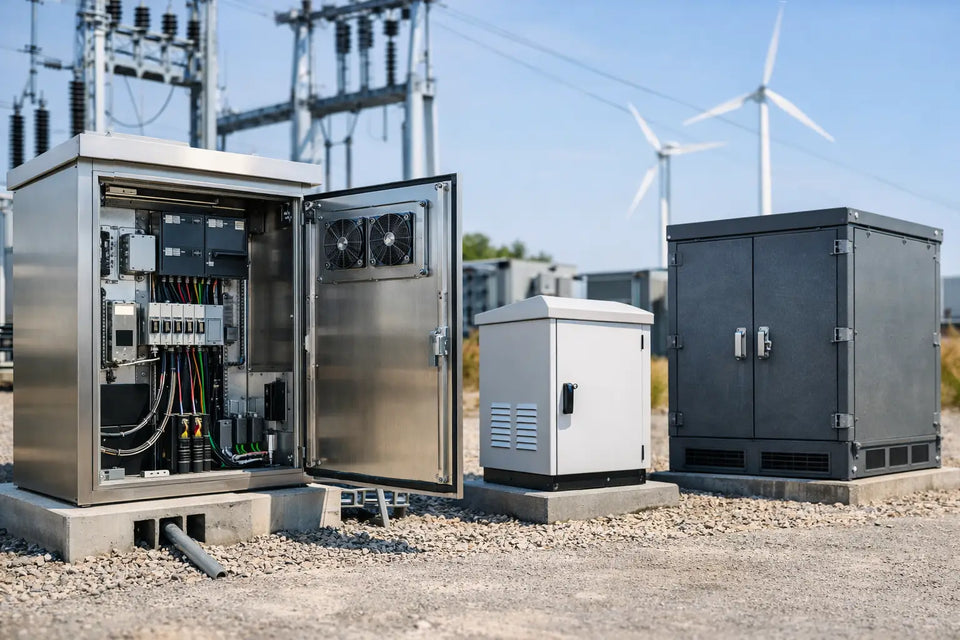

Power Enclosures That Fit the Job Properly

An exposed power supply can turn an otherwise tidy build into a weak point. Dust settles in terminals, wiring is easy to snag, and a supply mounted wherever it happened to fit rarely looks or performs its best. Well-chosen power enclosures give the supply a defined place, protect the installation and make future maintenance far less painful.

For LED lighting, aquarium equipment, workshop electronics, audio projects and custom control setups, the enclosure is not an afterthought. It needs to fit the actual supply, allow it to shed heat and suit the way cables enter, exit and mount in the finished build.

What a Power Enclosure Needs to Do

A power enclosure has a simple job: contain and protect the power supply without creating new problems. That means keeping fingers and loose objects away from terminals, reducing exposure to dust and accidental knocks, and presenting a cleaner finished installation.

It also needs to respect the operating requirements of the power supply inside it. Many compact switch-mode supplies, including common Meanwell units, rely on free air around their casing for cooling. Put one in a tight, sealed box with no thought given to airflow and the enclosure can shorten component life rather than improve it.

The right design balances protection with ventilation. A unit mounted in a clean indoor cabinet may only need a tidy cover with open airflow. A unit installed near a sump, in a dusty workshop or beneath a bench needs more consideration around splash paths, debris and cable strain relief. There is no single enclosure style that suits every job.

Start With the Exact Power Supply

The first measurement is not the available space on the wall or inside the cabinet. It is the power supply itself. Check the manufacturer dimensions, mounting-hole positions, terminal orientation and the space needed for plugs, bends and cable glands.

A cover that clears the aluminium case but leaves no room to terminate cables is not a usable fit. Likewise, an enclosure that forces mains and low-voltage wiring into sharp bends will make installation harder and may put unnecessary strain on conductors.

When selecting an enclosure for a Meanwell-style supply, confirm the specific series and model. Similar-looking units can differ in length, height, hole spacing and terminal layout. Build around the actual model number rather than assuming a cover made for one 12 V supply will suit another.

Allow practical clearance around the supply. You need room to access terminal screws, read labels where required, route the input and output cables, and remove the unit later without dismantling half the project. A few extra millimetres in the right place is usually more useful than a perfectly tight cosmetic fit.

Check mounting before buying

Mounting is where many otherwise good installations become awkward. A power enclosure should give you a sensible way to fix the assembly to a flat surface, frame, rack or cabinet. Consider the material beneath it and whether you can access the rear for screws, nuts or washers.

Mounting points also need to hold the combined weight of the enclosure, supply and connected cables. In a portable setup, vibration and cable movement matter more than they do in a fixed cabinet. Do not rely on a loose-fitting cover or adhesive alone where the power supply needs positive mechanical support.

Ventilation Is a Design Requirement, Not a Bonus

Heat is the main trade-off with enclosed power supplies. Switch-mode units are efficient, but they still produce heat under load. Their rated output, ambient temperature and airflow conditions all affect how hard they can work over time.

Vent openings should support natural airflow rather than simply add holes at random. In many installs, lower and upper openings help warmer air rise out of the enclosure. Keep vents clear of carpet, foam, cable bundles and nearby surfaces. If the enclosure sits in a confined compartment, the larger surrounding space must also be able to release heat.

The hotter the location and the closer the supply will run to its maximum rating, the more cautious you should be. A supply operating conservatively in an open indoor setup has different needs to one driving high-power LEDs inside a warm cabinet through summer.

Avoid placing an enclosure directly beside heat sources, in full sun or where warm air from another device is exhausted onto it. If a cover feels excessively hot in normal use, do not ignore it. Review the load, ventilation, ambient conditions and supply rating before treating the enclosure as the problem on its own.

Cable Entry Should Be Planned Early

Clean cable routing is one of the biggest practical benefits of a purpose-designed enclosure. It only works when cable entry has been considered before installation.

Decide where mains input, DC output and any control wiring will run. Keeping cables directed towards their destination reduces clutter and avoids large loops inside the enclosure. Where possible, provide enough separation between mains and extra-low-voltage wiring to keep the layout clear and serviceable.

Cable entry points need to protect the insulation from sharp edges and stop a pulled cable transferring force directly to a terminal. Depending on the build, that may mean a suitable gland, grommet, strain-relief feature or connector arrangement. A neat hole with a cable pushed through it is rarely the finished solution.

Think about service access as well. Can you tighten a terminal screw after the enclosure is mounted? Can a cable be removed without taking the whole assembly off the wall? Can you identify which output goes to which device? These details separate a tidy-looking build from one that remains practical six months later.

Material Choice Depends on the Environment

For many indoor electronics projects, a well-designed 3D-printed enclosure is a practical option. It can be shaped around a specific power supply, include mounting features where they are needed and avoid the wasted space of a generic electrical box. It also suits low-volume and custom installations where an off-the-shelf metal case is the wrong size or layout.

Material selection still matters. The enclosure needs to tolerate the expected ambient temperature, avoid becoming brittle in its location and be suitable for the environment it will face. A part that works well in a dry home office may not be the right answer near saltwater, outdoor weather or high workshop heat.

Metal enclosures can offer greater mechanical protection and may be appropriate in tougher locations, but they introduce their own requirements. Edges, earthing, insulation clearances and cable entry all need proper attention. They are not automatically safer just because they are metal.

For aquarium and moisture-prone installations, keep power supplies away from splash zones and provide drip loops on cables. An enclosure can reduce accidental contact and direct debris, but it does not make a non-weatherproof supply suitable for wet conditions. Locate the assembly where it can stay dry and be inspected easily.

Do Not Treat a Cover as Electrical Compliance

An enclosure improves physical protection, but it does not change the electrical rating or approval status of the power supply inside it. Mains wiring, earthing, fusing, isolation and installation requirements must be handled correctly for the equipment and location.

If you are working with 240 V mains input, unsure about terminal connections or building equipment for someone else to use, use a licensed electrician. This is particularly relevant for permanent installations, commercial work, damp areas and any build where a fault could put people or property at risk.

Keep the power supply label and electrical information accessible where practical. Do not block required ventilation, bypass protective earth arrangements or modify a supply casing to make it fit. The cleaner option is usually to choose an enclosure designed around the correct supply from the start.

Choosing Power Enclosures for Real Builds

The best enclosure is the one that suits the installation rather than the one with the most features. For a small LED driver setup, compact dimensions and cable direction may matter most. For a cabinet-mounted supply, accessible mounting and ventilation may take priority. For a reef lighting system, placement away from moisture and a route for tidy cabling become central to the design.

Before committing, lay out the supply, cables, plugs and mounting hardware on the bench. This quickly exposes clearance issues that are easy to miss on a product drawing. Measure twice, especially around terminal covers, connector bodies and the bend radius of thicker cable.

MnN Proto-Lab designs practical enclosure covers and installation accessories around the details that matter in real setups: fit, mounting, airflow and a finished result that does not look improvised. Choose the supply first, plan the cable path second, then select the enclosure that lets both do their job properly.
