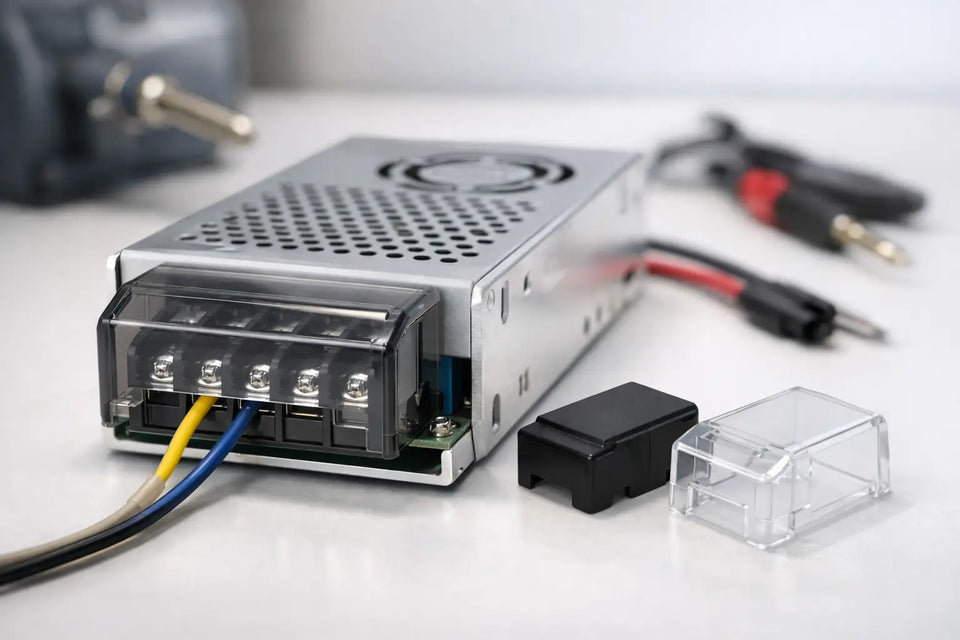

PSU Terminal Cover Review for Mean Well Supplies

An exposed terminal block is one of those details that can make an otherwise tidy build look unfinished - and, around mains wiring, it can be more than a cosmetic issue. This PSU terminal cover review looks at the practical value of fitting a cover to a Mean Well-style enclosed power supply: what it protects, where it can create headaches, and how to tell whether it suits your installation.

The short version is simple. A well-designed terminal cover is worth fitting when the power supply is mounted where hands, tools, loose cable, condensation or general workshop traffic can get near the input and output terminals. It is not a substitute for correct wiring, strain relief, earthing or an appropriate enclosure. It is a final layer of protection that also makes the job look properly considered.

PSU terminal cover review: what it needs to do

A terminal cover has a narrow job, but it needs to do it properly. It should shield the screw terminals and exposed conductor entry points without making the supply difficult to wire, inspect or service. That balance separates a useful purpose-made cover from a generic box or a loosely improvised guard.

For common enclosed Mean Well power supplies, the terminals are usually positioned along one edge of a perforated metal case. Depending on the model, that may include active, neutral and earth on the AC side, plus positive and negative DC outputs. A cover should create a physical barrier over this area while leaving a sensible path for cables to enter and exit.

The best covers do not rely on pressure against the wires to stay in place. They locate positively on the PSU body or use dedicated mounting points, so the cover remains secure when a cable is moved. That matters in real installations, particularly inside cabinets, lighting housings, aquarium stands, control boxes and 3D printer enclosures where access can be tight.

Material choice also matters. A quality 3D printed cover should have adequate wall thickness, clean cable openings and enough stiffness that it does not flex into terminal screws. It does not need to be overbuilt, but thin walls and sharp internal edges are warning signs. You want a part that feels like an installation component, not a temporary print.

Safety is the first reason to fit one

The AC terminals on a mains-powered PSU deserve particular attention. Even when the system is installed out of sight, an uncovered terminal area leaves more room for accidental contact during maintenance. A dropped screw, a stray strand from poorly terminated cable, or a tool slipping in a cramped enclosure can quickly turn a simple adjustment into a serious problem.

A terminal cover reduces the chance of incidental contact. It can also help prevent low-voltage cables, sensor leads or other loose wiring from resting directly across the terminal area. That is useful in builds that grow over time, where an originally neat cable run becomes less tidy after upgrades.

There is an important limit: a cover does not make unsafe wiring safe. Use correctly rated cable, ensure terminals are properly tightened, keep copper fully contained within the terminal, and provide suitable strain relief. If mains wiring is involved and you are not qualified or confident to assess the work, engage a licensed electrician. Australian electrical requirements are not something to guess at.

It should improve cable management, not fight it

Fitment is where many covers either earn their place or become frustrating. The cable entry points need enough clearance for the wire gauge and ferrules used in the build. A cover designed around very thin hook-up wire may be awkward with the heavier cable needed for higher-current DC outputs.

Before fitting, check the direction your cables need to run. Some installations want the wiring to leave straight down; others need it to exit sideways to clear a panel, DIN rail, fan housing or mounting bracket. A cover with a clean, open exit path is generally easier to work with than one that forces tight bends immediately at the terminals.

This is especially relevant on LED lighting and aquarium installations. A power supply may sit in a confined cabinet where every cable has a job to do. A terminal cover should help separate mains input from low-voltage output wiring and keep the terminal edge from becoming a snag point. It should not block ventilation or force cables against the PSU case.

Fit, airflow and service access

A PSU cover must match the exact power supply series and case size. Mean Well supplies are available in many physical formats, and two units with similar wattage may have different terminal spacing, screw locations and case profiles. Buying by wattage alone is not enough.

Check the PSU model number on the label, then confirm the cover is made for that model or case family. Pay attention to whether the cover suits an enclosed metal supply, an open-frame unit or a DIN-rail supply. They are not interchangeable. A cover that nearly fits can interfere with cable entry, leave terminals partly exposed or sit against components it should not touch.

Airflow is the next consideration. Many enclosed power supplies use perforated cases to shed heat. A terminal cover should protect the terminal strip only and avoid blanketing large sections of the ventilation slots. If your supply runs warm because it is heavily loaded, mounted in a small compartment or exposed to summer temperatures, leave the manufacturer’s specified clearance around the unit and avoid adding unnecessary obstruction.

Service access is the trade-off. A fully enclosed terminal section looks neat, but you still need to be able to inspect connections later. A good design is secure yet removable without dismantling the entire installation. That makes periodic checks easier, particularly in equipment that runs continuously.

Where a terminal cover makes the most sense

The value of a cover depends on the environment. In a locked electrical cabinet that is only opened by qualified staff, the benefit may be mostly presentation and cable discipline. On a bench power project, under a desk, inside an aquarium cabinet or in a shared workshop, the extra barrier is far more worthwhile.

It is a particularly sensible addition where the PSU is visible or accessible to people who did not build the system. A clean cover communicates that the terminal area is not a place to poke, tug or store spare cable. It also gives a custom installation a finished edge without requiring a large, purpose-built enclosure.

For makers building low-voltage lighting, controllers, audio equipment or automation projects, terminal covers are a small part with an outsized effect on the final result. The wiring remains easier to trace, the supply looks less industrial, and the exposed connection area is reduced.

That said, do not use a terminal cover where the actual problem is a poor mounting location. A power supply placed near splash zones, excessive heat, combustible material or areas prone to physical damage may need a different enclosure or a relocated installation. Covers are targeted protection, not a catch-all solution.

What to check before you buy

Start with the dimensions and terminal layout of your PSU, not a product photo. Confirm that the cover is intended for your exact model family, then consider the cable gauge, direction of entry and available space around the terminal edge.

Also inspect the rest of the mounting arrangement. The PSU should be fixed securely to a suitable surface, with room for airflow and cable strain relief. If the cover needs to be removed for servicing, make sure nearby brackets, panels and cable ties do not make that impossible.

A purpose-made Australian-made cover, such as those developed by MnN Proto-Lab for compatible Mean Well enclosures, makes more sense than modifying a generic housing when fit and access matter. The advantage is not decoration. It is having cable exits, mounting geometry and terminal protection considered for the supply actually being used.

Verdict: a small part that finishes the installation

A PSU terminal cover is not exciting hardware, and that is exactly why it is useful. It solves a practical loose end: exposed terminals in a build that otherwise deserves to be safe, tidy and serviceable. The right cover fits the specific supply, keeps cable routing sensible and leaves ventilation and maintenance access intact.

Fit one where the terminal area could be touched, bumped or crowded by other wiring. Then give the same attention to the wiring behind it. A clean cover is most useful when it finishes a clean installation.
