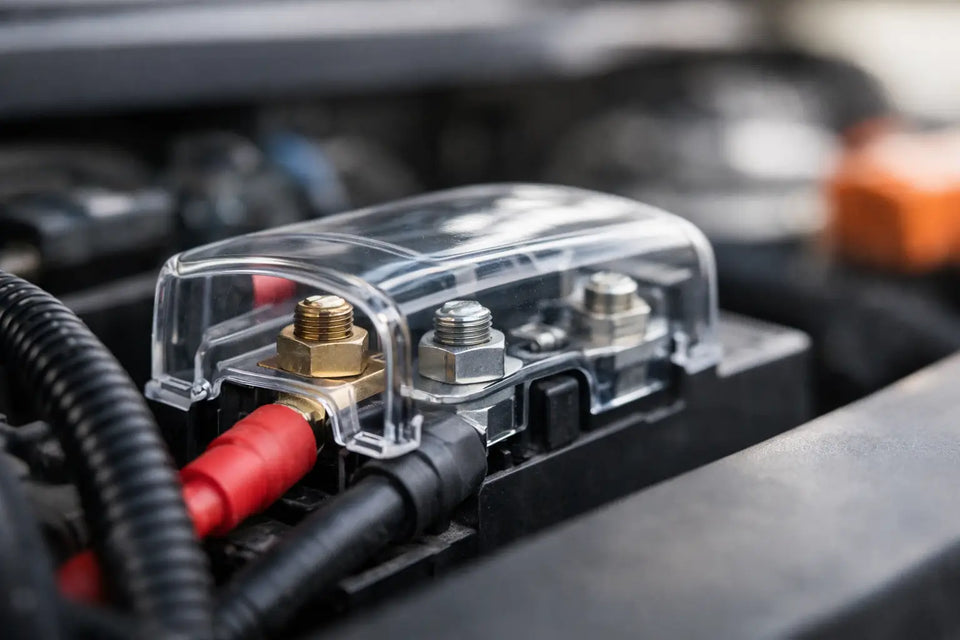

Power Terminal Protection That Fits Properly

An exposed terminal block on a power supply is easy to ignore until a lead is pulled, a tool slips, or dust and offcuts find their way into the enclosure. Power terminal protection is a simple addition that helps keep live connection points covered, wiring supported and installations looking finished. For DIY electronics, LED lighting, audio builds and cabinet installs, it is one of those small details that prevents larger problems later.

The right cover does not make poor wiring safe, nor does it replace correct fusing, earthing or electrical compliance. What it does is reduce accidental access to terminals and provide a cleaner, more durable finish around a component that should not be left exposed.

Where power terminal protection earns its place

Open-frame switch-mode power supplies are common in practical builds because they are compact, capable and economical. They are also designed with accessible screw terminals for installation. Once mounted, those terminals can remain exposed to fingers, loose cable strands, conductive debris and everyday knocks.

That matters in more places than a workshop bench. A 12 V or 24 V supply may be running LED strips in a display cabinet, powering a reef lighting setup, feeding a small control enclosure or supporting a custom audio project. Low-voltage output terminals still deserve orderly wiring, while the mains input side requires particular care. If the supply is within reach, near stored equipment, or installed where maintenance happens regularly, a fitted terminal cover is sensible protection.

A cover also improves cable discipline. It encourages wires to enter and leave the power supply in a predictable direction rather than looping across terminals. That makes future checks easier and reduces the chance of a cable being snagged when equipment is moved.

Start with the actual power supply

Terminal covers are not universal parts. Before selecting one, identify the exact power supply model and check its overall dimensions, terminal layout, mounting-hole position and ventilation arrangement. Similar-looking supplies can have different terminal spacing or casing profiles, and a cover that nearly fits is not a proper solution.

Measure the clearance around the terminal end as well. A compact enclosure may leave little room for cable bends, ferrules or thicker insulated conductors. If wiring exits through a narrow opening at an awkward angle, the cover can place unnecessary strain on the connections. A good fit leaves enough room for cable entry without allowing open access to the terminals.

For common Meanwell power supplies, a purpose-designed enclosure cover is generally a better option than cutting down a generic box. It can follow the shape of the unit, align with its mounting points and maintain access to the terminals needed during installation. That is the difference between a part added as an afterthought and one designed for the job.

Check ventilation before enclosing anything

Power supplies generate heat, especially when operating near their rated load or mounted in warm cabinets. A terminal cover should shield the connection area without blocking ventilation slots, fan intake or exhaust paths. Covering the entire supply in a sealed enclosure without considering heat can shorten its service life or cause thermal shutdown.

The right approach depends on the environment. In a clean, open equipment rack, a terminal-end cover may be all that is needed. In a dusty shed, humid aquarium cabinet or frequently handled installation, the wider setup may need a properly ventilated enclosure, sensible cable routing and protected mains entry. More coverage is not automatically better if it traps heat or complicates inspection.

Choose materials for the installation, not the photo

Most practical power supply covers are made from electrically non-conductive plastics. For 3D printed components, material choice and print design both affect long-term performance. The cover needs adequate wall thickness, sensible fastening points and enough stiffness that it will not flex into wiring when bumped.

PLA can work for light-duty indoor applications away from heat, but it is not always the best choice around a warm power supply or in an Australian garage that gets hot through summer. PETG is often a more suitable option where better heat tolerance and toughness are needed. Other engineering materials may be appropriate for specialised environments, but they bring their own print, cost and finishing trade-offs.

Colour is functional too. Black blends into most electronics and lighting installations, while a lighter colour can make dust, damage and cable markings easier to spot. The priority is not matching the case perfectly. It is choosing a material and form that will remain secure in the conditions where the unit actually operates.

Good wiring still does the heavy lifting

Terminal protection works best when the wiring underneath it is done properly. Strip conductors to the manufacturer’s specified length, ensure no bare copper is visible outside the terminal, and tighten screws to the correct torque where that information is provided. Fine-stranded wire should be terminated appropriately so individual strands cannot spread or escape from the clamp.

Keep mains and low-voltage wiring clearly separated where the supply layout allows. Use cable glands, strain relief or suitable mounting points so a tug on a lead is not transferred directly to the terminal screws. Label outputs where multiple voltage rails, channels or circuits are present. These habits make fault-finding safer and save time when a system is revisited months later.

Avoid forcing oversized cable into a cover just because it can be made to fit. If the bend radius is too tight, the cover presses on the insulation, or the cable has no strain relief, revise the layout. A neat installation is usually easier to inspect because it is not fighting its own geometry.

Installation details that make a difference

Fit the cover only after the supply is securely mounted and wiring has been checked. Confirm that the cover does not pinch conductors, interfere with terminal screws or prevent access to any required earth connection. Where a cover uses screws, do not overtighten into printed plastic. Firm engagement is enough; stripping threads makes later servicing difficult.

Once fitted, give each cable a gentle pull test at the point where it enters the covered area. The cover should stay seated, and no wiring should move at the terminal. Check that ventilation remains open and that the supply can still be isolated or serviced without dismantling half the installation.

For a build that will be moved, transported or used by others, it is worth checking the cover again after the first few operating hours. Heat cycles can settle cable positions, and an installation that looked tidy on the bench may reveal a tight lead or awkward access point once it is in its final location.

Protection is not a substitute for compliance

This is the line worth keeping clear: a terminal cover is an accessory, not an electrical certification. It cannot compensate for a damaged power supply, undersized cable, missing earth, incorrect fuse, poor mounting surface or inappropriate use in wet conditions.

Mains-powered work carries real risk. If an installation involves fixed wiring, uncertain supply arrangements, metal enclosures, damp locations or any doubt about safe connection, use a licenced electrician. Australian requirements can apply to the product, the installation and the environment in which it is used. A clean-looking cover is useful, but it should sit on top of sound electrical practice.

Build for the next adjustment

The best power terminal protection is fitted, secure and unobtrusive, but not so permanent that it turns a simple wiring check into a major job. Choose a cover made for the specific supply, leave ventilation clear, route cables with enough slack and strain relief, and make sure the terminal area remains serviceable.

For makers building lighting systems, power distribution setups or equipment cabinets, that practical finish is worth the effort. A properly covered terminal end protects the part of the system most likely to be touched, bumped or cluttered, while leaving the whole installation easier to understand when the next adjustment comes around.
