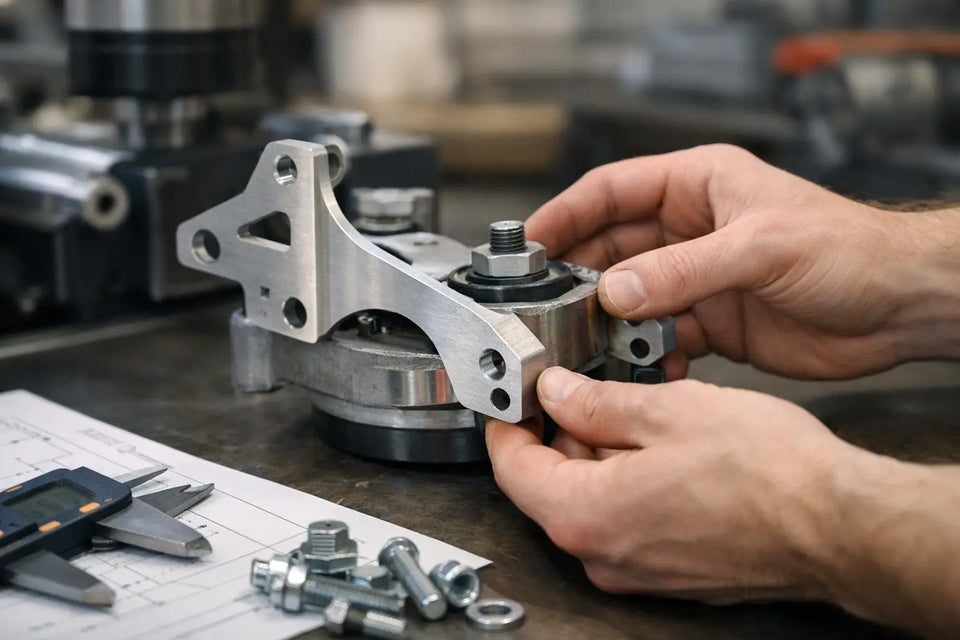

How to Design Custom Brackets That Fit First Time

A bracket can be only a few centimetres long and still make or break an installation. When a power supply cover sits crooked, an aquarium light shade sags, or a cable tray pulls away from its fixing points, the problem is usually not the printer. It is the design. To design custom brackets that fit first time, start with the real load, the mounting surface and the space around the part - not the shape you hope will work.

For makers, hobbyists and small builders, a well-designed bracket replaces improvised spacers, bent metal strips and cable ties with a clean, repeatable fixing. It should locate the component accurately, install without a fight and hold its shape for the long term. That takes a few deliberate decisions before the first prototype is printed.

Start with the job the bracket must do

A custom bracket is not simply a piece that joins two things together. Define its job in plain terms: does it support weight, stop sideways movement, set a fixed angle, create clearance, protect an exposed component or make removal easier? One bracket may need to do several of these jobs, but each requirement affects the geometry.

Consider a mount for an LED light over a reef tank. The bracket may need to carry the light, keep it clear of salt spray, position it at a set height and allow adjustment during setup. A simple L-shape might hold the initial load, yet fail the practical test if it cannot clear the tank rim or if the fixing screws are difficult to reach once installed.

Write down the component dimensions, its mass, where the load sits relative to the wall or mounting face, and how often it will be handled. A bracket supporting a static enclosure is different from one that gets bumped, adjusted or removed every week. Repeated movement and vibration can be more demanding than the component weight alone.

Measure the installation, not just the component

The part you are mounting is only half the design. Measure the installation area with equal care. This means checking wall thickness, panel edges, screw access, nearby plugs, cables, cooling vents and the direction the item needs to slide on or off.

For a power supply enclosure, allow space for cable bend radius and airflow. For a speaker port or audio component, account for the surrounding panel thickness and the internal volume it occupies. For aquarium equipment, check water line clearance, tank lip dimensions and whether the bracket can be fitted without dismantling the rest of the setup.

Calipers are useful for critical dimensions, but a steel rule and a cardboard mock-up often reveal problems sooner. Hold a cut-out shape in the intended position. You will quickly see whether a screw head collides with a cable, whether a flange needs to be longer, or whether the part needs a finger gap for removal.

Build tolerance into every interface

A nominal measurement is rarely the measurement you should model. Printed parts vary slightly, surfaces are not always square and off-the-shelf equipment dimensions can differ between batches. A bracket designed at the exact measured width may be unnecessarily tight.

For a part that needs to slide over an object, add sensible clearance on the mating faces. The right amount depends on printer accuracy, material, part size and the finish of the component. A snug electronics mount may need only a small allowance; a larger bracket fitted over a painted or uneven surface needs more.

Holes deserve the same attention. Modelled hole sizes often print undersize, particularly on smaller diameters. If a screw must pass through freely, size the hole for clearance rather than modelling it at the screw’s nominal diameter. If threads are required, consider heat-set inserts, captive nuts or a purpose-designed screw boss instead of relying on a repeatedly used thread cut directly into plastic.

Design the load path before the outside shape

The strongest-looking bracket is not always the strongest bracket. What matters is how force travels from the mounted item through the bracket and into the fixing surface. Long unsupported arms bend. Sharp internal corners concentrate stress. Thin sections around screw holes can crack, even when the rest of the part looks substantial.

Keep the load close to the mounting face where possible. If the component must sit away from the wall, use gussets between the vertical and horizontal faces. A gusset adds material along the force path and can make a major difference without turning the entire bracket into a bulky block.

Round internal corners rather than leaving sharp 90-degree transitions. Fillets reduce stress concentration and generally print better. Increase thickness where the bracket joins a mounting flange, around fasteners and at the base of hooks or clips. Adding thickness everywhere wastes material and print time; reinforcing the high-stress areas is more effective.

Think about leverage. A 500-gram item mounted 20 mm from a panel places far less bending force on a bracket than the same item mounted 150 mm out. If clearance forces a long stand-off, use a wider fixing footprint, extra fasteners or a braced geometry. The correct solution depends on the surface too. A sturdy timber cabinet, thin aluminium panel and plasterboard wall do not offer the same holding strength.

Choose material for the environment

Material selection is a functional decision, not a colour choice. PLA can produce neat prototypes and light-duty indoor parts, but it is not usually the best option for brackets exposed to heat, direct sun or sustained load. It can soften in hot conditions and creep over time.

PETG is often a practical choice for indoor mounts where better toughness and moisture resistance are needed. It suits many equipment brackets, cable-management parts and humid-area accessories, although its flexibility needs to be considered on long arms. ASA is better suited to outdoor or UV-exposed applications, provided it is printed properly. For higher heat, chemical exposure or demanding mechanical use, engineering materials may be warranted, but they bring more demanding printing requirements and are not automatically the best answer.

For aquarium use, choose materials with the actual environment in mind. Humidity, salt residue, cleaning products and warmth around lighting can all change how a part performs. Keep structural plastic away from prolonged heat where possible, and do not block ventilation designed into electrical equipment.

Make fixing points easy to use

A bracket that requires three hands to install is not finished. Place fasteners where a screwdriver or hex key can reach them after the component is in position. Leave clearance for screw heads, washers and tools. Countersunk screws can give a flush finish, but only where the bracket has enough material to support the countersink without weakening the hole.

Use the right fixing method for the substrate. Timber screws work well into suitable timber. Machine screws with nuts, inserts or threaded holes suit panels and enclosures. Adhesive mounting can work for light, well-prepared applications, but it should not be treated as a substitute for mechanical fixing when there is meaningful load, heat or vibration.

If alignment matters, add a locating lip, slot or shallow recess so the bracket positions itself before the fasteners are tightened. Slots are useful where adjustment is needed, such as setting the position of a light or allowing for small variation between installations. They can reduce stiffness, so reinforce the surrounding area when the load is significant.

Design custom brackets for the print process

A 3D-printed bracket is directional. It is generally stronger along the printed layers than across them, so print orientation should influence the model from the beginning. A hook printed with layer lines running across its bend may split under load even if the same design looks solid on screen.

Where possible, orient the part so the main pulling or bending forces run along continuous perimeters rather than trying to separate layers. Avoid designs that rely on heavy support material in critical faces. Supports add finishing work, can reduce surface accuracy and are a poor substitute for a better-shaped part.

Use enough wall thickness and perimeters to suit the application. Infill supports the interior, but outer walls and geometry usually do more of the structural work. A well-placed rib, fillet or gusset can outperform simply increasing infill percentage. For a functional bracket, predictable strength matters more than a fast print with an impressive-looking infill pattern.

Prototype the risky detail first

Do not always print the whole bracket to test one hole spacing or clip fit. Print a short section containing the interface, screw hole and critical clearance. It is quicker, cheaper and makes iteration less frustrating. If the test piece fits, move to the complete part with far more confidence.

Check fit under real conditions. Mount it, route the actual cables, fit the cover and apply a sensible load. Look for flexing, awkward tool access, interference and any edge that could rub through a cable or mark the mounting surface. Small changes at this stage are normal engineering, not a failed attempt.

MnN Proto-Lab approaches functional accessories this way: start with the installation problem, test the interfaces and refine the part until it does its job without adding clutter. The result should look clean because the design is properly resolved, not because the weak points have been hidden.

A custom bracket earns its place when it removes an ongoing annoyance. Measure the real installation, allow for variation and test the high-risk details before committing to the final print. The best version is usually the one you fit once, then forget is there.
