How to Install Cable Tray for a Clean Cable Run

A cable run usually looks untidy long before it becomes difficult to service. Loose leads sag, power supplies collect dust, and one small change can turn into tracing a dozen cables by hand. When you install cable tray properly, every cable has a defined path, enough support, and room for future changes without pulling the whole setup apart.

For home workshops, rack builds, aquarium cabinets, lighting systems and electronics benches, the aim is not to make a commercial switchboard in the spare room. It is to create a cable route that is secure, accessible and suited to the equipment it carries. The right tray, mounted well, makes the installation look finished because it is easier to maintain.

Choose the tray for the job, not just the cable count

Cable tray is available in wire mesh, perforated steel, solid-bottom, plastic and lightweight support styles. The best choice depends on the environment, cable weight and how often you expect to add or remove leads.

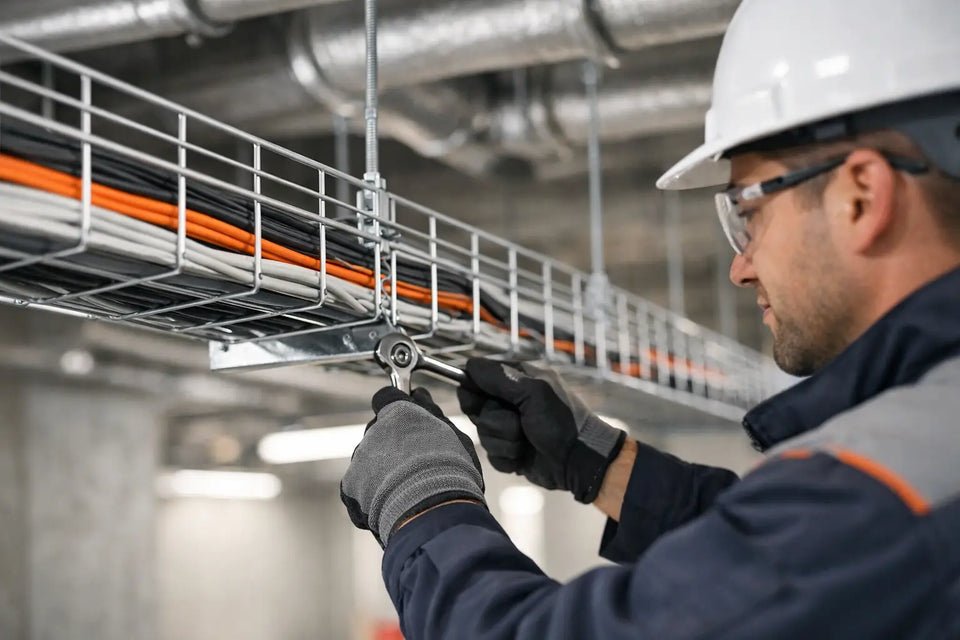

Wire mesh tray works well where visibility and ventilation matter. It is useful around network gear, AV equipment and low-voltage power supplies because cables can enter or leave at almost any point. Perforated or solid tray gives more continuous support and can suit heavier cable bundles, but it is less forgiving when you need to change direction or add a cable halfway along the run.

For a cabinet, desk or compact technical build, a narrow tray or purpose-made cable support route is often enough. There is no benefit in fitting a large commercial tray for six leads. Oversizing can make a small enclosure crowded and awkward to work around. On the other hand, a tray packed edge to edge leaves no allowance for heat, movement or future equipment.

Measure the total cable bundle at its widest point, then allow spare capacity. A practical target for small installations is to leave at least a third of the tray free. This gives you room for a replacement power lead, an additional light, a sensor cable or a network run later on.

Before You Install Cable Tray, map the route

Do not start by drilling holes. Lay out the route first and identify where every cable begins, ends and needs to branch. A tray route should follow the structure of the setup: along the back of a cabinet, under a bench, beside a frame, or through the dry service area of an aquarium stand.

Keep mains power separated from low-voltage signal cables where practical. This reduces clutter and can help limit electrical noise in audio, networking and control wiring. The required separation depends on the cable type, voltage, installation method and applicable rules, so do not assume a small gap is suitable for every job.

Also account for service loops. A cable should not be pulled tight between the tray and the device. Leave enough length to remove a power supply cover, lift a light fitting, slide out a component or reposition equipment without straining a connector. The loop belongs close to the equipment, not as a tangled bundle in the middle of the tray.

Check the path for heat and moisture. Avoid running cables directly beside a heater, under a point where condensation can drip, or through an area that regularly gets hosed down. In aquarium installations, keep power and connection points in the dry zone and arrange leads so water cannot track along them into plugs or equipment. A drip loop is simple, but it is there for a reason.

Set support spacing to suit the load

A tray only performs as well as its mounting points. Too few supports create sag, place stress on cable ties and make a neat route look temporary. The correct spacing varies with tray material, tray width, cable weight and the strength of the mounting surface.

For a light plastic or wire tray carrying a few data, lighting or low-voltage leads, supports at regular close intervals will generally prevent movement. As the tray gets wider, the span gets longer, or the cable bundle becomes heavier, reduce the distance between supports. Support both sides of a join and place additional brackets near bends, tees and points where cables leave the tray.

Fix into material that can carry the load. Timber framing, a solid cabinet wall, steel structure or a properly rated mounting rail is more reliable than thin backing board alone. Use fixings suited to the substrate: timber screws for solid timber, machine screws and washers where you can access the rear, or appropriately rated anchors for masonry. Plasterboard fixings may be adequate for a very light run, but they are rarely the best answer for a tray that will gain weight over time.

Before loading the tray, give it a firm hand check. It should not twist, flex excessively or pull away from the mounting surface. Correct that now, not after cables, power bricks and connectors are installed.

Plan bends and entries without damaging cables

Sharp corners are hard on cable jackets and can make it difficult to pull a lead through later. Use purpose-made bends where possible, or make gradual direction changes. If you cut wire tray or modify a metal tray, remove burrs and fit edge protection where a cable could touch the cut edge.

Cable entries need the same attention. A cable passing through a metal panel, cabinet wall or tray edge should be protected with a grommet or suitable edging. This is especially relevant where vibration, door movement or repeated servicing could cause abrasion.

Mount the tray level, then load it in stages

Mark the support positions before fitting the first bracket. Use a level for visible horizontal runs, but do not chase perfect level at the expense of a sensible route. In an aquarium cabinet, for example, a slight route adjustment may be worthwhile to keep the tray clear of plumbing and allow access to valves.

Fit the supports, secure the tray, then check for clearance around doors, drawers, removable panels and equipment vents. It is much easier to shift an empty tray by 20 mm than it is to rebuild a fully dressed cable run.

Load large or fixed cables first, such as mains leads routed to a protected power location, then add lower-voltage leads and signal cables. Keep each group travelling in a logical direction. Crossing leads repeatedly may save a few centimetres of cable, but it makes fault-finding slow and future changes messy.

Use cable ties, hook-and-loop straps or clips to stop cables moving, not to compress the bundle into a hard lump. Hook-and-loop straps are particularly useful where equipment changes often. If using cable ties, do not overtighten them. A tie that bites into the insulation can damage the cable and makes later servicing unnecessarily painful. Trim tie tails flush so sharp edges are not left inside the cabinet.

Label both ends of cables that disappear into a tray, particularly in setups with multiple power supplies, lighting channels, pumps, audio components or network devices. A simple label saves time when something needs replacing six months from now.

Treat mains work as electrical work

Cable tray can organise fixed wiring, but installing or altering electrical wiring is not the same as tidying appliance leads. In Australia, electrical work is regulated and must be carried out by a licensed electrician where required. This includes situations involving fixed mains wiring, switchboards, hardwired equipment, earthing requirements, circuit protection, wiring enclosures and compliance with AS/NZS 3000.

Do not use a cable tray to hide damaged leads, join cables outside approved enclosures, or overload a power board. Tray improves organisation. It does not make an unsafe electrical arrangement safe.

For plug-in equipment, the practical checks are simpler: inspect leads for damage, keep connections dry, avoid blocking ventilation, and make sure plugs and isolators remain accessible. Where a power supply sits in a cover or enclosure, allow the ventilation space specified for that unit rather than packing the tray and cables tightly around it.

Make future maintenance part of the installation

The best cable tray installation is one you can understand at a glance. Each run has a purpose, cables are supported without being trapped, and a component can be removed without cutting half a dozen ties.

After everything is fitted, stand back and test the serviceability. Can you identify each cable? Can a door close without pinching a lead? Can you replace a device or clean the area without dismantling the cable route? If the answer is no, make the adjustment while the layout is still fresh.

A well-planned tray does more than hide cables. It gives a technical setup a proper service path, protects the leads that keep it running, and leaves room for the next useful change.
